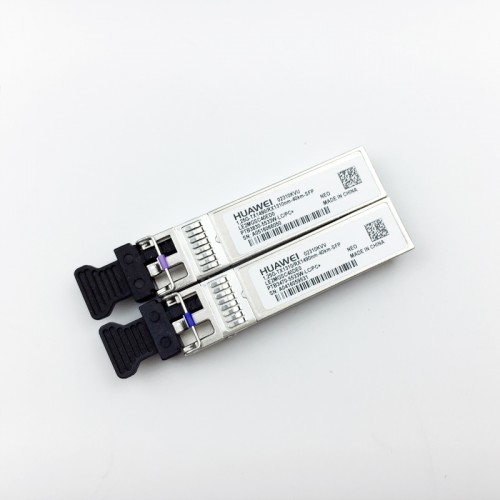

[02310KVU] Huawei LE2MGSC40ED0 Optical Transeiver, eSFP, GE, BIDI Single-mode Module (TX1490/RX1310, 40km, LC)

Basic Information

Module name: LE2MGSC40ED0
Part Number: 02310KVU
Model: LE2MGSC40ED0
Form factor: eSFP
Application standard: 1000BASE-BX
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 1 Gbit/s
Target transmission distance [km]: Single-mode fiber: 40 km
Transmitter Optical Characteristics

Center wavelength [nm]:
1310 nm (RX)
1490 nm (TX)
Maximum Tx optical power [dBm]: 3.0 dBm
Minimum Tx optical power [dBm]: -2.0 dBm
Minimum extinction ratio [dB]: 9 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -23 dBm
Overload power [dBm]: -3.0 dBm
NOTE:

This module supports the single-fiber bidirectional function.
Single-fiber bidirectional (BIDI) optical modules must be used in pairs. For example, LE2MGSC40ED0 must be used with LE2MGSC40DE0.
