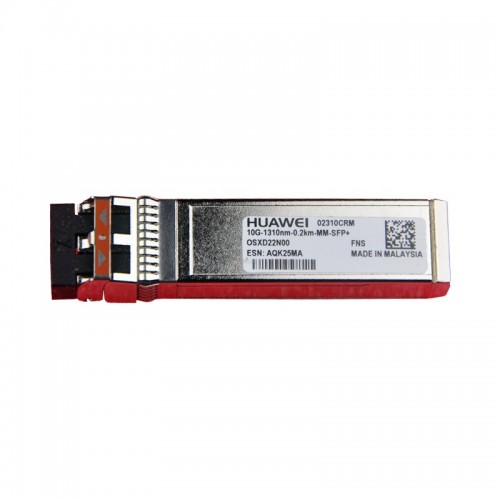

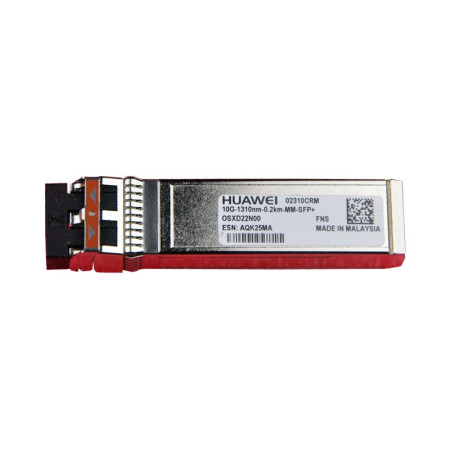

[02310CRM] Huawei OSXD22N00 Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM)

Basic Information

Module name: OSXD22N00
Part Number: 02310CRM
Model: OSXD22N00
Form factor: SFP+
Application standard: 10GBASE-LRM
Connector type: LC
Optical fiber type: MMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10 Gbit/s
Target transmission distance [km]:
Multimode fiber (with modal bandwidth of 400 MHz*km and diameter of 50 μm): 0.1 km
Multimode fiber (with modal bandwidth of 500 MHz*km and diameter of 62.5 μm): 0.22 km
Multimode fiber (OM1, OM2, OM3): 0.22 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 0.5 dBm
Minimum Tx optical power [dBm]: -6.5 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics

Rx sensitivity [dBm]: -6.5 dBm
Overload power [dBm]: 1.5 dBm
