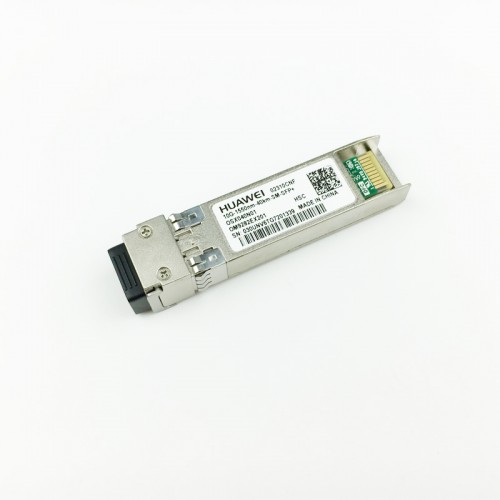

[02310CNF] Huawei OSX040N01 Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 40km, LC)

Basic Information

Module name: OSX040N01
Part Number: 02310CNF
Model: OSX040N01
Form factor: SFP+
Application standard/Type: 10GBASE-ER
Connector type: LC
Optical fiber type: SMF
Type of the end face of the fiber ceramic ferrule: PC or UPC
Working case temperature [°C (°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10Gbit/s
Target transmission distance [km]: Single-mode fiber (G.652) (with diameter of 9 μm): 40 km
Transmitter Optical Characteristics

Center wavelength [nm]: 1550 nm
Maximum Tx optical power (AVG) [dBm]: 4.0 dBm
Minimum Tx optical power (AVG) [dBm]: -4.7 dBm
Minimum extinction ratio [dBm]: 3.0 dBm
Receiver Optical Characteristics

Rx sensitivity (OMA) [dBm]: -14.1 dBm
Overload power (AVG) [dBm]: -1.0 dBm
