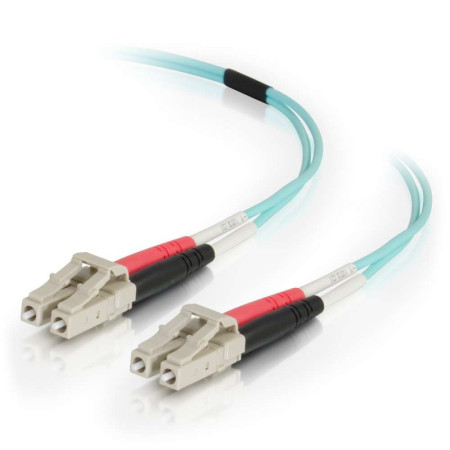

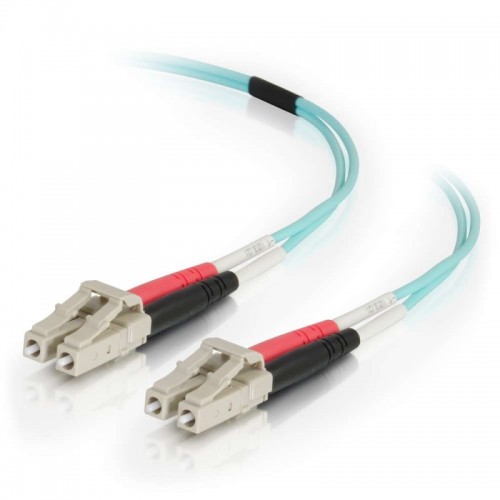

[QK732A] HPE 1m PremierFlex OM4 LC/LC Multi-Mode Optical Cable, 656427-001

Specifications

Manufacturer: HPE
Part Number: QK732A
Cable Type: Fiber Optic Cable
Connector on first end: (1) Duplex LC Male
Connector on second end: (1) Duplex LC Male
Fiber: 50/125 OM4
Length: 1m
Color: Aqua

Electrical Characteristics

Fiber Code - T
Performance Option Code - 90
Optical Fiber Type - 50 Multimode
ISO/IEC 11801 Nomenclature - OM4
Wavelength (nm) - 850/1300
Maximum Attenuation (dB/km) - 3.0/1.0
Minimum Over Filled Launch (OFL) - 1500/500 MHz km
Minimum Effective Modal - 4700/— (MHz km)
Serial 1 Gigabit Ethernet Distance (m) - 1000/600
Serial 10 Gigabit Ethernet Distance (m) - 550/—

Physical Characteristics

Fiber Count - 2
Nominal Weight kg/km (lb/1000ft) - 3.4 (2.3)
Nominal Outside Diameter mm (in) - 2.0 (0.08)
Minimum Bend Radius Loaded cm (in) - 3.0 (1.2)
Minimum Bend Radius Installed cm (in) - 1.0 (0.4)
Maximum Tensile Loads Short-Term N (lbf) - 220 (48)
Maximum Tensile Loads Long-Term N (lbf) - 66 (15)
Storage Temperature - -40°C to 70°C
Installation Temperature - 0°C to 60°C
Operation Temperature - 0°C to 70°C
Approvals - NEC, OFNP, CSA FT-6, ICEA S-83-596
