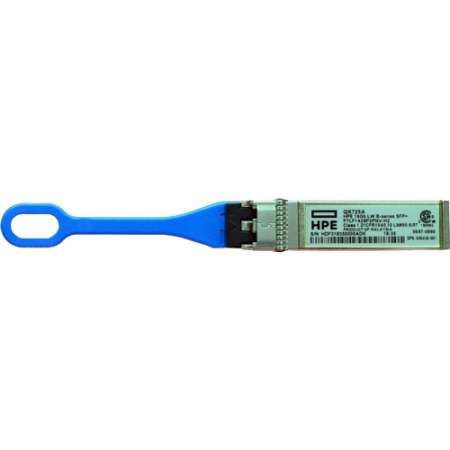

[QK725A] HPE B-SERIES 16GB SFP+ LONG WAVE 10KM TRANSCEIVER

Features
HPE B-series QK725A 16G SFP+ Long Wave 10km Transceiver
Supported Data Rate: 4 Gb/s – 14.0 Gb/s
Optical interface compliant to IEEE 802.3ae
Electrical interface compliant to SFF-8431
Built-in CDR with shut-off control
Single +3.3V power supply
Advanced firmware allow customer system
Specifications
Form Factor: SFP+
Data Rate: 14.025 Gb/s
Wavelength: 1310 nm
Fiber Type: SMF
Max Distance: 10km
Optical Components: DFB/PIN
Transmitter Power: -5 ~ 2 dBm
Extinction ratio: > 3.5 dB
Receiver Sensitivity: < -12 dBm
Receiver Overload: > 2 dBm
Connector: Duplex LC
Digital Diagnostic Monitoring: Yes
Environment
Operating: 0°C to 70°C
Storage: -40°C to 85°C
Weight: 0.03 kg
Application
High-speed storage area networks
Switches and hubs
Network interface cards
Mass storage systems
Host bus adapters
Tri-Rate 4G/8G/16G Fibre Channel
Compliance
IEC/EN 61000-4-2,IEC-60825
FDA 21CFR 1040.10 and 1040.11
RoHS
Product Dimensions (imperial): 6.1 x 0.6 x 7.16 in
Product Dimensions (metric): 15.49 x 1.52 x 18.19 cm
