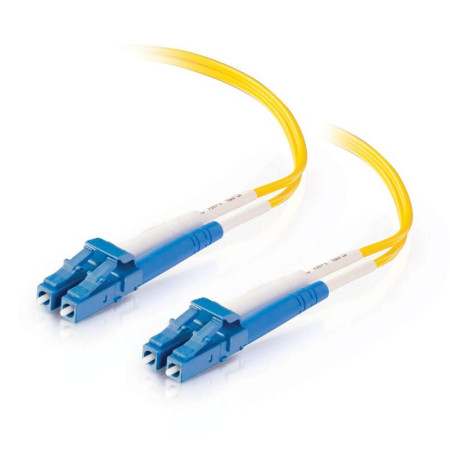

[AK346A] HPE 5m Single-Mode LC/LC Fibre Channel Cable

Specifications

Manufacturer: HPE
Part Number: AK346A
Cable Type: Fiber Optic Cable
Connector on first end: (1) Duplex LC Male
Connector on second end: (1) Duplex LC Male
Length: 5 m
Color: Yellow

Features

LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -55 dB
Buffer Material: PVC
Buffer OD: 900 µm
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 1.8 mm
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
Crush Resistance: 750 N/cm
Impact Resistance: 1,000 cycles
Flex Resistance: 5,000 cycles
Attenuation at 1550 nm: 0.25 dB/km
Attenuation at 1310 nm: 0.35 dB/km
Operating Temperature: -20°C to +70°C
