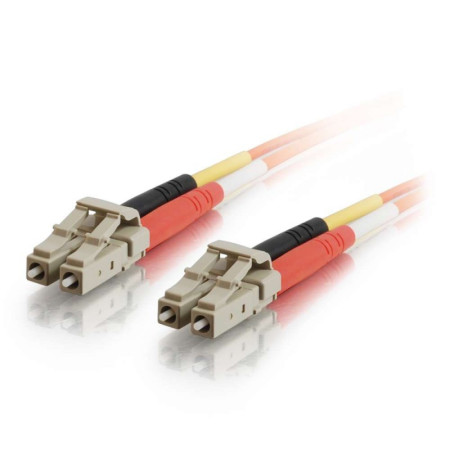

[AF553A] HPE 30m LC-LC DUPLEX 50/125 Multi-Mode Fiber Patch Cable, 263895-005

Specifications

Manufacturer: HPE
Part Number: AF553A
Spare P/N: 263895-005
Cable Type: Fiber Patch Cable
Connector on first end: (1) Duplex LC Male
Connector on second end: (1) Duplex LC Male
Length: 30 Meter
Color: Orange

Features
Optical Multimode 2 (OM2) fiber supporting 500 MHz.km OFL at 850/1300 nm.
LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Buffer Material: PVC
Buffer OD: 900 µm
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 1.8 mm
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
Crush Resistance: 750 N/cm
Impact Resistance: 1,000 cycles
Flex Resistance: 5,000 cycles
Attenuation at 1300 nm: 1.0 dB/km
Attenuation at 850 nm: 3.5 dB/km
Operating Temperature: -20°C to +70°C
