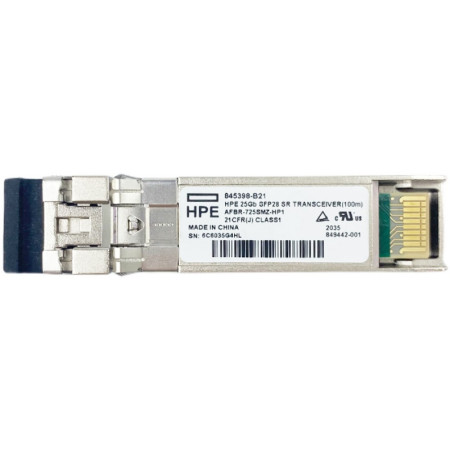

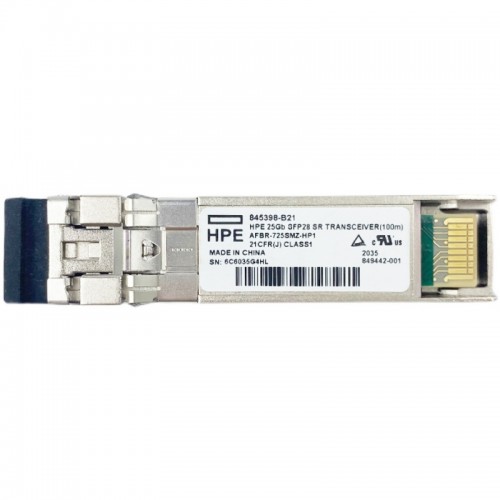

[845398-B21] HPE AFBR-725SMZ-HP1 25G SFP28 SR 100m Transceiver

General
Brand: HPE
MPN: AFBR-725SMZ-HP1
Option Part Number: 845398-B21
Spare Part Number: 849442-001
Device Type: SFP28 Transceiver Module
Form Factor: Plug-in module

Networking
Connectivity Technology: Wired
Cabling Type: 25GBase-SR
Data Link Protocol: 25 Gigabit LAN
Data Transfer Rate: 25 Gbps
Max Transfer Distance: 328 ft

Expansion & Connectivity
Interfaces: 1 x Ethernet 25GBase-SR - LC multi-mode x 2

Specifications
Media Type: Multi-Mode Fiber (MMF)
TX Wavelength: 850 nm.
RX Wavelenght: 850 nm.
Minimum Optical Budget: 2.6 dB
Maximum Distance: 100m
Supported Data Rate: 8.5-28.1 Gbps
Supported Applications: 25G Ethernet (25.78Gbps), 10G Ethernet (10.31Gbps)
DDM/DOM: Supported
Temperature Range: Standard 0°-70°C
Connectors: Double LC
Tx Wavelength Bandwidth: 20 nm (840-860 nm)
Rx Wavelength Bandwidth: 20 nm (840-860 nm)
Minimum Transmitting Power: -8.4 dBm
Maximum Transmitting Power: 2.4 dBm
Receiver Sensitivity: -11 dBm
Receiver Overload: 2.4 dBm
Transmitter Type: VSCEL Laser
Receiver Type: PIN photodiode
Power: +3.3V single power supply
Chipset: II-VI, Macom, Neo, Oclaro, Renesas Electronics, MAXIM, SEMTECH, Sumitomo
Compliance: IEEE 802.3by, RoHS-6, SFF-8432, CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, SFF-8402, SFF-8431, SFF-8472, SFP+ MSA
