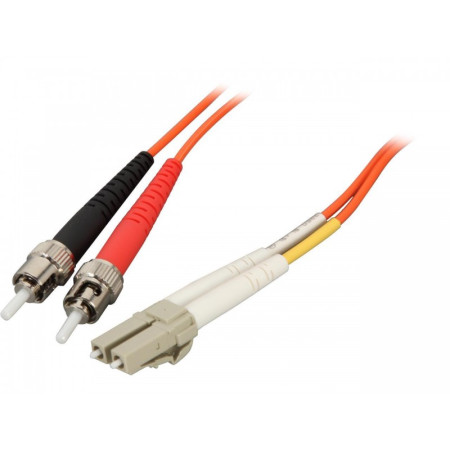

[33201] HPE Cables-To-Go 4m LC-ST 62.5/125 OM1 Duplex Multimode PVC Fiber Optic Cable

Specifications

Color : Orange
Length : 4.00 Meter
UPC : 757120332015
Warranty : Lifetime
Vendor : C2G
Weight : 0.100 LB

Features

Optical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.
LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
ST Connector Dimensions: 9.8mm Height x 19.6mm Width x 59mm Depth
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Buffer Material: PVC
Buffer OD: 900 µm
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 1.8 mm
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loaded) Minimum Bend Radius: 5.0cm (1.97in)
Long-Term (Unloaded) Minimum Bend Radius: 3.0cm (1.2in)
Crush Resistance: 750 N/cm
Impact Resistance: 1,000 cycles
Flex Resistance: 5,000 cycles
Attenuation at 1300 nm: 1.0 dB/km
Attenuation at 850 nm: 3.5 dB/km
Operating Temperature: -20°C to +70°C
