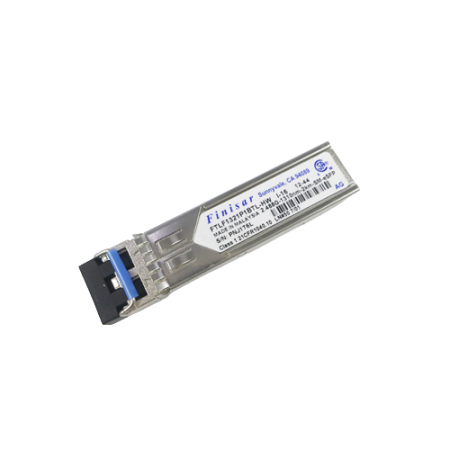

[FTLF1321P1BTL-HW] II-VI Finisar Optical Transceiver, eSFP, 1310nm, 2.67Gb/s, -9.5~-3dBm, -18.0dBm, LC, SM, 2km

Features
Up to 2.67Gb/s bi-directional data links
Hot-pluggable SFP footprint
Built-in digital diagnostic functions
Uncooled Fabry-Perot 1310nm laser transmitter
Duplex LC connector
RoHS compliant
Metal enclosure, for lower EMI
Single 3.3V power supply
Low power dissipation <700mW typical
Extended operating temperature range: -40°C to 85°C

Applications
SONET OC-48 SR / SDH STM I-16
SONET OC-12 SR / SDH STM I-4
SONET OC-3 SR / SDH STM I-1
Gigabit Ethernet / Fibre Channel

Specifications
Data Rate (max): 2.67 Gb/s
Connector: Duplex LC
Wavelength: 1310nm
Distance: 2 km
Diagnostics: Digital
Transmitter: Fabry-Perot Laser
Receiver: PIN
Voltage Supply: 3.3V
Low End Case Temperature: -40°C
High End Case Temperature: 85°C
Protocol: Optical Gigabit Ethernet Compliant 1x Fibre Channel Compliant 2x Fibre Channel Compliant SONET OC-3 Compatible SONET OC-12 Compatible SONET OC-48 Compliant Wireless CPRI Compliant
