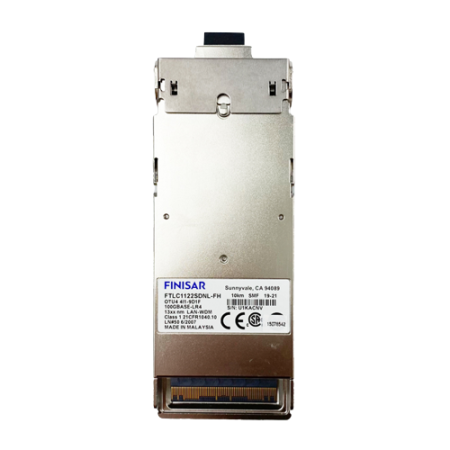

[FTLC1122SDNL-FH] Finisar 100GBASE-LR4 13xxnm LAN-WDM OTU4 4I1-9D1F Dual Rate CFP2

Features
Hot-pluggable CFP2 form factor
Supports 103.1Gb/s and 112Gb/s aggregate bit rates
Power dissipation < 5W
RoHS compliant
Commercial case temperature range of 0°C to 75°C
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
4x28Gb/s DFB-based LAN-WDM transmitter
4x28G electrical interface
Duplex LC receptacles
MDIO management interface

FTLC1122SDNL
S: OTU4 maximum bit rate (112 Gb/s)
D: 4x28G LAN-WDM optical architecture
N: Flat top module (no heat sink)
L: LC straight receptacles

Applications
OTN OTU4 4I1-9D1F
OTUC1 (FOIC1.4)
100GBASE-LR4 100G Ethernet

Specifications
Data Rate (max): 112 Gb/s
Connector: LC
Wavelength: 1310nm Band
Distance: 10km
Diagnostics: Digital
Transmitter: 4x LWDM DFB Laser
Receiver: PIN
Voltage Supply: 3.3V
Low End Case Temperature: 0°C
High End Case Temperature: 75°C
Protocol: 100G Ethernet Compliant
