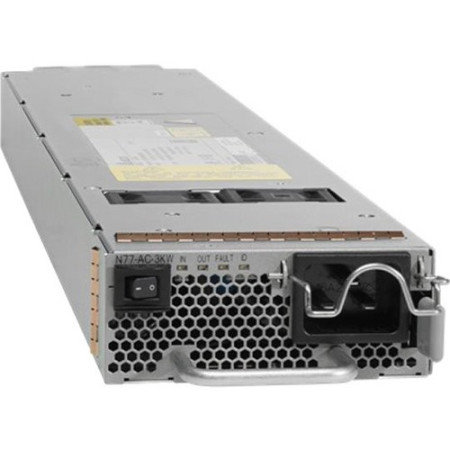

[N77-AC-3KW] Cisco Nexus 7000 Power supply - hot-plug / redundant ( plug-in module ) - 80 PLUS Platinum - AC 100-240 V - 3 kW

Device Type Power supply - hot-plug / redundant - plug-in module
Power Device
Input Voltage AC 100-240 V
Input Voltage Range AC 85 - 264 V
Frequency Required 47 - 63 Hz
Input Connectors Power IEC 60320 C20
Power Capacity 3 kW
Efficiency 90%
80 PLUS Certification 80 PLUS Platinum
Miscellaneous
Features LED indicator, overheat protection, short-circuit protection, fan speed control
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, NEBS, CSA C22.2 No. 60950-1, AS/NZS 3548 Class A, AS/NZS 60950, VCCI Class A, KN22 Class A
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Dimensions & Weight
Width 3.9 in
Depth 22 in
Height 1.6 in
Weight 5 lbs
Compatibility Information
Designed For Cisco Nexus 7700 18-Slot Switch 220 Gbps/Slot Fabric Module, 7700 Switches 10-Slot Chassis, 7700 Switches 10-Slot Switch 220 Gbps/Slot Fabric Module
