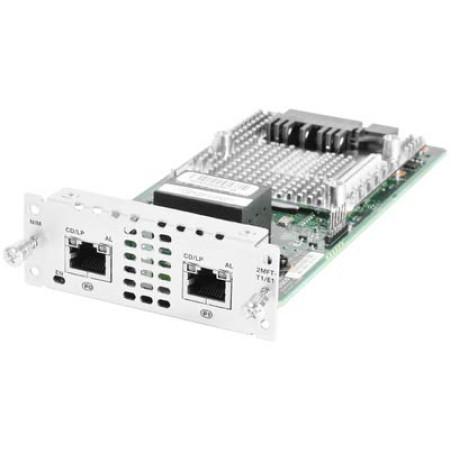

[NIM-2MFT-T1/E1] Cisco Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module - Expansion module

General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports T1/E1 x 2
Connectivity Technology Wired
Data Transfer Rate 2.048 Mbps
Remote Management Protocol SNMP, Telnet
Line Rate T-1/E-1
Line Coding Format AMI, B8ZS, HDB3
Status Indicators Carrier detect, alarm
Features Integrated CSU/DSU
Expansion / Connectivity
Interfaces 2 x T1/E1
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-4-2, EN 61000-4-3, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-6-2, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, AS/NZS 60950, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, GR-63-CORE
Dimensions & Weight
Width 3.5 in
Depth 7.2 in
Height 1.3 in
Weight 6.74 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 - 85% (non-condensing)
