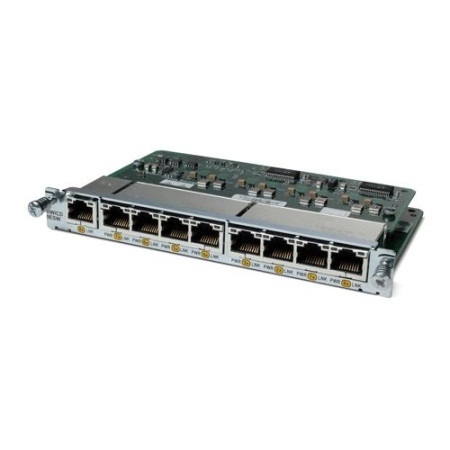

[HWIC-D-9ESW-POE] Cisco 9-Port Ethernet Switch HWIC with Power Over Ethernet

Specifications

Target Applications

Data, voice, and video

Supported Router Platforms

Cisco 1800 (modular), Cisco 2800, and Cisco 3800 series integrated services routers, Cisco 1841 (supports HWIC-4ESW only; no PoE support), Cisco 2801, Cisco 2811, Cisco 2821, Cisco 2851, Cisco 3825, Cisco 3845, Cisco 1941, Cisco 2901, Cisco 2911, Cisco 2921, Cisco 2951, Cisco 3925, Cisco 3945

Form Factor

HWIC-D-9ESW = Double-wide HWIC form factor

Dimensions (W x D x H)

HWIC-D-9ESW = 6.20 x 4.74 x 0.76 in.

Weight

HWIC-D-9ESW-POE = 196 grams (0.43 lb)

Standards

IEEE Protocols

Ethernet: IEEE 802.3, 10BASE-T

Fast Ethernet: IEEE 802.3u, 100BASE-TX

IEEE 802.1d Spanning Tree Protocol

IEEE 802.1p CoS for Traffic Prioritization

IEEE 802.1q VLAN

IEEE 802.1x Security

IEEE 802.3x Full Duplex

IEEE 802.3af Power over Ethernet Standard

RFC

RFC 2284, PPP Extensible Authentication Protocol (EAP)

Manageability

SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management

RMON, SPAN, TFTP, NTP

Environmental

Operating Temperature

32 to 104°F (0 to 40°C)

Operating Humidity

10 to 85% noncondensing operating
