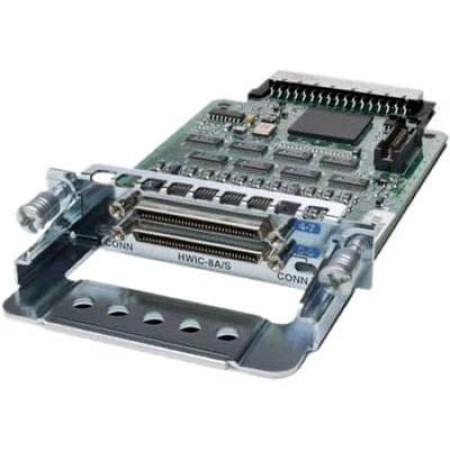

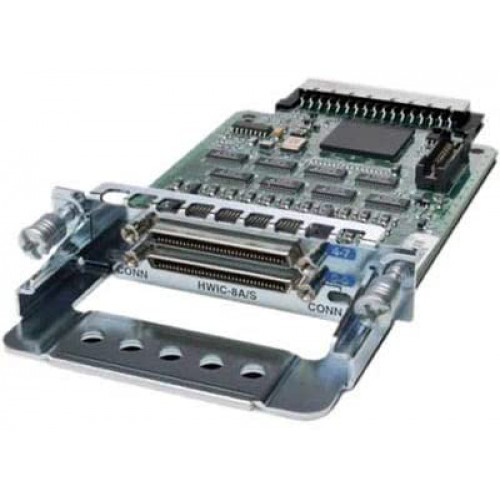

[HWIC-8A/S-232] Cisco 8-Port Async/Sync Serial HWIC, EIA-232

Application/Usage:

Wide Area Network

Interfaces/Ports

Interfaces/Ports:

8 x Synchronous /Asynchronous Serial WAN

Media & Performance

Connectivity Media:

Serial Cable

Data Transfer Rate:

256 Kbps Maximum Synchronous Serial Per Port

230.40 Kbps Maximum Asynchronous Serial Per Port

Management & Protocols

Protocols:

Bi-sync, TCP/IP, SDLC

Environmental Conditions

Temperature:

32°F (0°C) to 104°F (40°C) Operating

-4°F (-20°C) to 149°F (65°C) Storage

Humidity:

10% to 90% Non-condensing Relative Humidity

Physical Characteristics

Dimensions:

0.8" Height x 3.1" Width x 5.6" Depth

Miscellaneous

Additional Information:

· The HWIC-8A/S provides Eight low-speed synchronous/asynchronous ports, EIA-232 only, and two High-density 4-port connectors and cabling

· Spare Product

· Lead Manipulation

· Network Clock Synchronization

System Requirements:

· The minimum Cisco IOS Software is Release 12.3(14)T

· One Expansion Slot

Certifications & Standards:

Agency Approvals:

· UL 1950 (United States)

· CSA-C22.2 #950 (Canada)

· EN60950 (Europe)

· TUV GS (Germany)

· IEC 950 (International)

Immunity:

· EN300386

· EN55024/CISPR24

· EN50082-1

Emissions:

· FCC Part 15 Class A

· ICES-003 Class A

· EN55022 Class A

· CISPR22 Class A

· AS/NZS 3548 Class A

· VCCI Class A

· EN 300386

· EN61000-3-3

· EN61000-3-2
