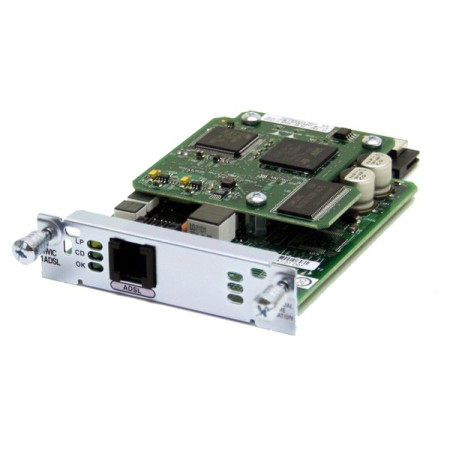

[HWIC-1ADSL] Cisco 1-port ADSLoPOTS HWIC Cisco Router High-Speed WAN Interface card

Interfaces/Ports:

1 x RJ-11 ADSL WAN

Media & Performance

Connectivity Media:

Twisted Pair

Data Transfer Rate:

8 Mbps ADSL Downstream

819.20 Kbps ADSL Upstream

12 Mbps ADSL2 Downstream

1 Mbps ADSL2 Upstream

24 Mbps ADSL2+ Downstream

1.50 Mbps ADSL2+ Upstream

Management & Protocols

Management:

Supports IP quality of service (QoS)

Environmental Conditions

Temperature:

32°F (0°C) to 104°F (40°C) Operating

-4°F (-20°C) to 149°F (65°C) Storage

Humidity:

10% to 90% Non-condensing Relative Humidity

Physical Characteristics

Dimensions:

0.8" Height x 3.1" Width x 4.7" Depth

Weight (Approximate):

3.04 oz

Miscellaneous

Additional Information:

· Supports ADSL over basic telephone service with Annex A ITU G. 992.1 (ADSL), G.992.3 (ADSL2), and G.992.5 (ADSL2+)

· Supports reach-extended ADSL2 standard (G.992.3) Annex L

· Complies with ANSI T1.413 issue 2

· Supports ATM Adaptation Layer 5 (AAL5) services

· Supports ATM CoS features constant bit rate (CBR), non-real-time variable bit rate (VBR-nrt), real-time variable bit rate (VBR-rt), and unspecified bit rate (UBR)

· Supports up to 23 virtual circuits per HWIC

· Supports Dying Gasp function

· Interoperates with third-party DSLAMs
