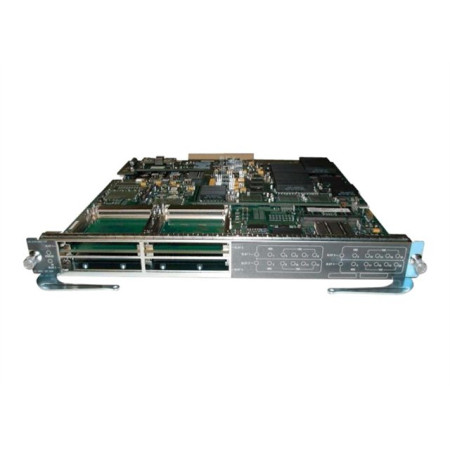

[WS-X6904-40G-2TXL] Cisco Catalyst 6900 Series 4-Port 40 Gigabit Ethernet Fiber Module with DFC4XL - 4 x Expansion Slot

General
Device Type Expansion module - 4 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Data Link Protocol 10 GigE, 40 Gigabit LAN
Data Transfer Rate 40 Gbps
Performance Switching fabric bandwidth: 80 Gbps ¦ Forwarding performance: 60 Mpps
Capacity Multicast entries (IPv4): 128000 ¦ Multicast entries (IPv6): 128000 ¦ NetFlow entries: 1000000 ¦ Hardware forwarding entries: 1000000 ¦ ACL entries: 256000
MAC Address Table Size 128K entries
Remote Management Protocol RMON
Features IGMP snooping, Weighted Random Early Detection (WRED), Quality of Service (QoS), Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3ba
Processor / Memory
RAM 2 GB
Expansion / Connectivity
Expansion Slots 4 (total) / 4 (free) x CFP
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CAN/CSA C22.2 No. 60950-1
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.7 in
Weight 11.9 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Compatibility Information
Designed For Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6513-E
