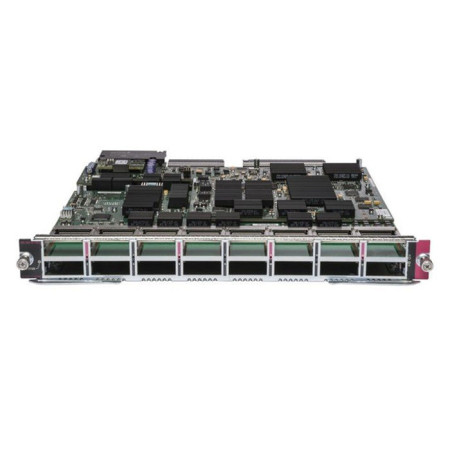

[WS-X6816-10G-2TXL] Cisco 16-port 10 Gigabit Ethernet Fiber Module DFC4XL - 16 x X2

General
Device Type Expansion module - 16 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 GigE
Data Transfer Rate 10 Gbps
Performance Switching fabric bandwidth: 40 Gbps
Capacity ACL entries: 256000 ¦ NetFlow entries: 1024000 ¦ Virtual interfaces (VLANs): 4000
MAC Address Table Size 128K entries
Status Indicators Status, link/activity
Features MPLS support, VLAN support, IGMP snooping, IPv6 support, Weighted Random Early Detection (WRED), Quality of Service (QoS), Jumbo Frames support, MLD snooping, IPv4 support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), GRE tunneling, Class of Service (CoS)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.3an, IEEE 802.3aq
Processor / Memory
RAM 1 GB
Expansion / Connectivity
Interfaces 16 x network - X2
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, UL 60950-1, IEC 60825-1, NEBS, EN 60825-1, CAN/CSA C22.2 No. 60950
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.2 in
Weight 13.6 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Compatibility Information
Designed For P/N: WS-C6503-E, WS-C6503-E-RF, WS-C6504-E, WS-C6504-E=, WS-C6504-E-RF, WS-C6506-E, WS-C6506-E-RF, WS-C6509-E, WS-C6509-E=, WS-C6509-E-RF, WS-C6509-V-E, WS-C6509-V-E-RF, WS-C6513-E
