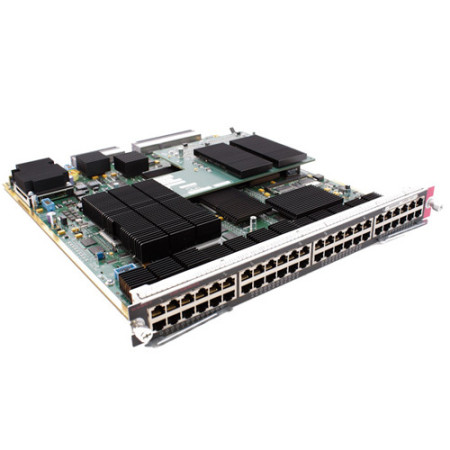

[WS-X6748-GE-TX] Cisco Catalyst Switching Module - 48 x 10/100/1000Base-T

General
Device Type Switch - 48 ports - managed
Enclosure Type Plug-in module
Subtype Gigabit Ethernet
Compatible Slots 1 x expansion slot
Ports 48 x 10/100/1000
Performance Bandwidth: 720 Gbps
Routing Protocol HSRP, VRRP
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP
Features Full duplex capability, auto-negotiation, VLAN support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Jumbo Frames support, Time Domain Reflectometry (TDR), Per-VLAN Spanning Tree Plus (PVST+)
Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
Status Indicators Port status, power, boot state, fail, link/activity
Expansion / Connectivity
Interfaces 48 x 1000Base-TX RJ-45
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 22 Class B, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55022 Class A, EN55022 Class B, AS/NZS 3260, FCC CFR21 Part 1040, EN 60825, FCC Part 15 A, CSA C22.2 No. 950, AS/NZS 3548 Class B, AS/NZS 3548 Class A
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 167 °F
Compatibility Information
Designed For Cisco Catalyst 6503, 6503 Firewall Security System, 6503 VPN System, 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Data Center Services Bundle, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E NAM-3 System, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Firewall Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E NAM-3 System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 Firewall Security System Bundle, 6513 IPSec VPN SPA Security System, 6513-E
