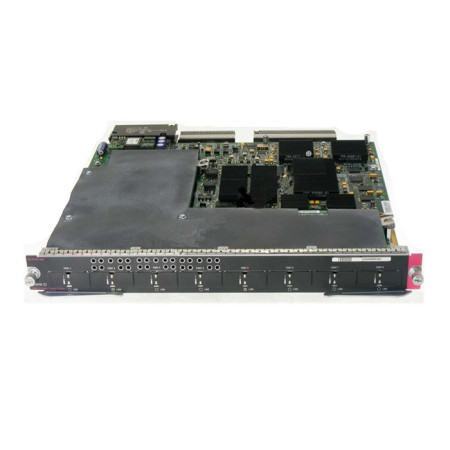

[WS-X6708-10G-3CXL] Cisco Catalyst 6500 8-Port 10 Gigabit Ethernet Module - 8 x X2

General
Device Type Expansion module - 8 ports
Form Factor Plug-in module
Networking
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-X
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Performance Switching capacity: 40 Gbps
Remote Management Protocol RMON, SMON
Status Indicators Port status, status
Features Jumbo Frames support, Deficit Weighted Round Robin (DWRR), Shaped Round Robin (SRR)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak
Processor / Memory
RAM 1 GB
Expansion / Connectivity
Expansion Slots 8 (total) / 8 (free) x X2
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards CISPR 22 Class A, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC CFR47 Part 15, FCC Part 15 A, AS/NZS 60950
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.2 in
Weight 13.01 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Compatibility Information
Designed For Cisco 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle ¦ Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 IPSec VPN SPA Security System
