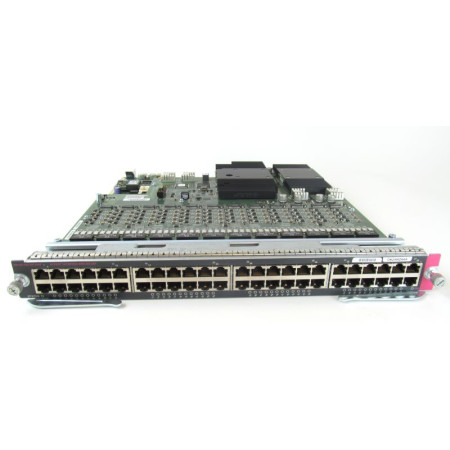

[WS-X6148A-GE-45AF] Cisco Gigabit Ethernet Interface Module - 48 x 10/100/1000Base-T

General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports Gigabit Ethernet x 48
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 1000Base-TX, Ethernet 100Base-TX
Data Link Protocol 10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate 1 Gbps
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features Fault tolerance, power over Ethernet (PoE), Cisco Gigabit EtherChannel, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, Per-VLAN Spanning Tree Plus (PVST+), Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST)
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s
Expansion / Connectivity
Interfaces 48 x 1000Base-TX (PoE) - RJ-45
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, CSA 22.2 No. 950, EN55022 Class A, AS/NZS 3260, AS/NZ 3548 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, EN 60825
Dimensions & Weight
Width 14 in
Depth 16 in
Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Compatibility Information
Designed For Cisco Catalyst 6503, 6503-E, 6503-E WSLM Bundle, 6504-E, 6504-E chassis with Supervisor Engine 32, 6506, 6506 chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6509, 6509 chassis, 6509-E, 6509-E chassis with Supervisor Engine 32, 6509-NEB, 6509-NEB-A, 6513
