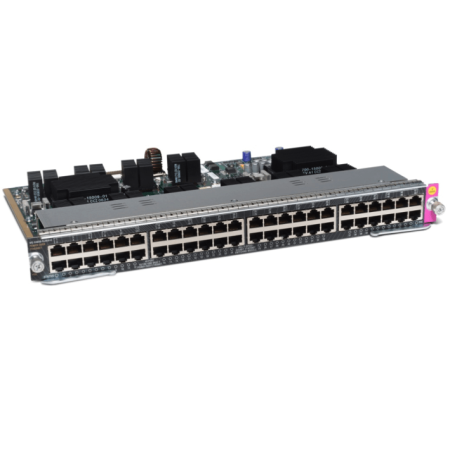

[WS-X4648-RJ45V+E] Cisco 48-Port PoE Line Card - 48 x 10/100/1000Base-T - Service Module

General
Device Type Switch - 48 ports
Enclosure Type Plug-in module
Subtype Gigabit Ethernet
Compatible Slots 1 x expansion slot
Ports 48 x 10/100/1000 (PoE)
Power Over Ethernet (PoE) PoE
Features Flow control, power over Ethernet (PoE), half duplex mode, full duplex mode, Jumbo Frames support, PoE+
Compliant Standards IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45 PoE
Miscellaneous
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, FCC Part 15 A
Software / System Requirements
OS Required Cisco IOS 12.2(40)SG
Dimensions & Weight
Width 14.3 in
Depth 10.7 in
Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%
Compatibility Information
Designed For Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E
