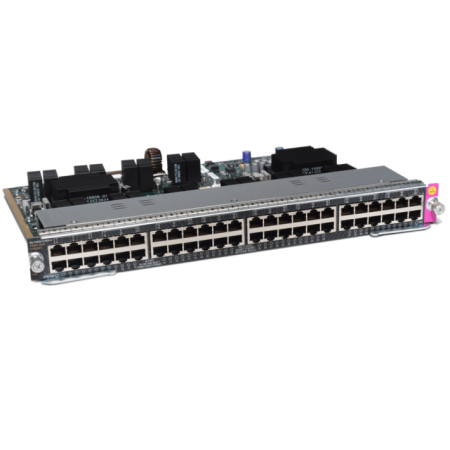

[WS-X4648-RJ45-E] Cisco 48-Port Switching Module - 48 x 10/100/1000Base-T LAN

General
Device Type Switch - 48 ports
Enclosure Type Plug-in module
Subtype Gigabit Ethernet
Compatible Slots 1 x expansion slot
Ports 48 x 10/100/1000
Features Flow control, half duplex mode, full duplex mode, Jumbo Frames support
Compliant Standards IEEE 802.3x
Status Indicators Port status, link OK
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45
Miscellaneous
MTBF 280,365 hours
Compliant Standards NEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, FCC Part 15 A
Software / System Requirements
OS Required Cisco IOS 12.2(50)SG
Dimensions & Weight
Width 14.3 in
Depth 10.7 in
Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 167 °F
