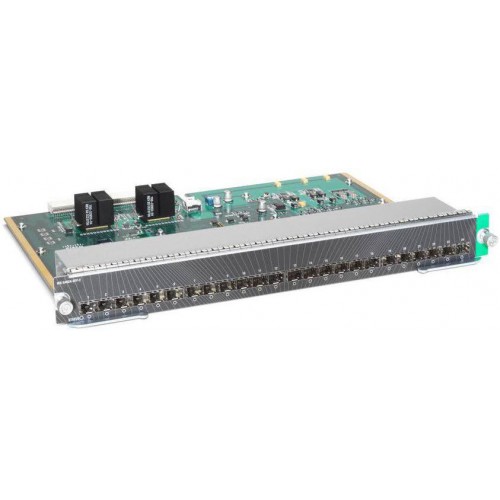

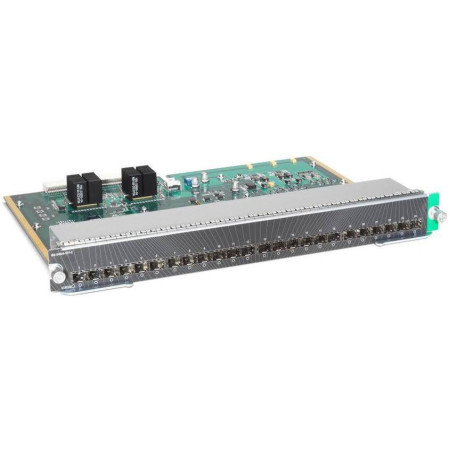

[WS-X4624-SFP-E] Cisco 24-Port SFP Line Card - 24 x SFP (mini-GBIC)- Service Module

General
Device Type Expansion module
Form Factor Plug-in module
Networking
Ports Gigabit SFP x 24
Connectivity Technology Wired
Data Link Protocol GigE
Data Transfer Rate 1 Gbps
Features Port Aggregation Protocol (PAgP) support, Jumbo Frames support
Compliant Standards IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3az
Expansion / Connectivity
Expansion Slots 24 (total) / 24 (free) x SFP
Compatible Slots 1 x expansion slot
Miscellaneous
MTBF 591,109 hour(s)
Compliant Standards NEBS level 3, CISPR 22 Class A, EN 60950, IEC950, UL 1950, CSA 22.2 No. 950, EN55022 Class A, AS/NZS 3548, RoHS, EN55024 Class A, EN 50121-4, GR-1089-CORE, GR-63-CORE, FCC Part 15 J Class A
Power
Power Consumption Operational 45 Watt
Dimensions & Weight
Width 14.3 in
Depth 10.7 in
Height 1.2 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
