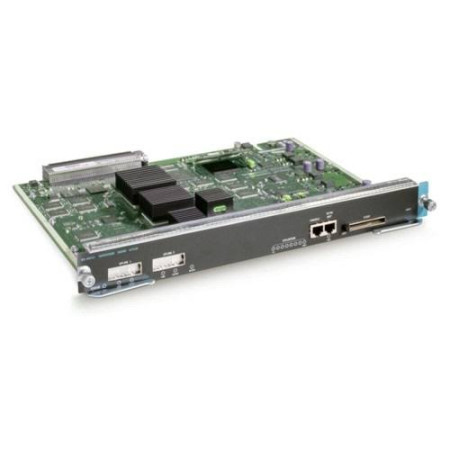

[WS-X4516] Cisco Catalyst 4500 Series Supervisor Engine V - 1 x Console

General
Device Type Control processor
Processor / Memory / Storage
Processors Installed 1 x 400 MHz
RAM 512 MB SDRAM
Networking
Form Factor Plug-in module
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol ICMP/IP
Routing Protocol OSPF, IGRP, RIP, BGP-4, RIP-2, EIGRP, IGMPv2, IGMP, DVMRP, VRRP, static IP routing, PIM-SSM, Multiprotocol BGP, policy-based routing (PBR)
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTPS, SSH, SSH-2
Performance Switching capacity: 96 Gbps ¦ Throughput: 72 Mbps
Capacity IPv4 routes: 128000 ¦ QoS hardware entries: 32000 ¦ MAC addresses: 32000 ¦ Virtual interfaces (VLANs): 4000
Status Indicators Network utilization %, system, link/activity
Features Switching, auto-negotiation, Cisco Fast EtherChannel, load balancing, VLAN support, Cisco Gigabit EtherChannel, IGMP snooping, ISL support, Syslog support, Stateful switchover (SSO), Spanning Tree Protocol (STP) support, Per-VLAN Spanning Tree (PVST), DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Dynamic Buffer Limiting (DBL), Jumbo Frames support
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Communications
Supported Flash Memory Cards CompactFlash Card
Expansion / Connectivity
Expansion Slots 2 (total) / 2 (free) x GBIC
Interfaces 1 x management - RJ-45 ¦ 1 x 100Base-TX (management)
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, ICES-003, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 3260, EN50204, AS/NZ 3548 Class A
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%
