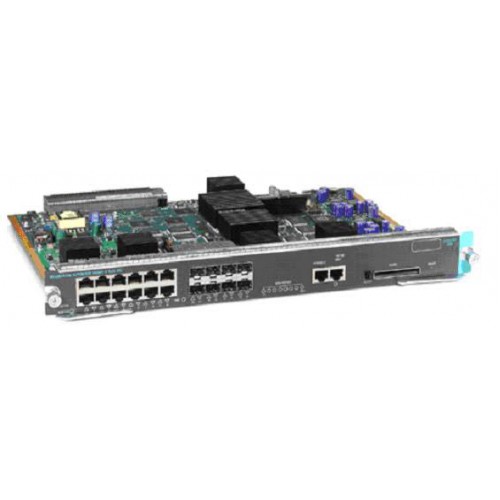

[WS-X4013+TS] Cisco Supervisor Engine II-Plus-TS - Control processor - 12 ports - 10Mb LAN, 100Mb LAN, Gigabit LAN

General
Device Type Control processor
Processor / Memory / Storage
Processors Installed 266 MHz
RAM 256 MB SDRAM
Flash Memory 32 MB
Networking
Form Factor Plug-in module
Ports Qty 12
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol Ethernet
Network / Transport Protocol TCP/IP, IPX/SPX, AppleTalk, UDP/IP
Routing Protocol RIP-1, RIP-2, IGMPv2, HSRP, IGMP, DVMRP, static IP routing, IGMPv3
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, Telnet, SNMP 3
Status Indicators Link OK, active, status
Features Layer 4 switching, layer 3 switching, layer 2 switching, DHCP support, VLAN support, IGMP snooping, IPv6 support
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Communications
Supported Flash Memory Cards CompactFlash Card
Expansion / Connectivity
Expansion Slots 8 (total) / 8 (free) x SFP (mini-GBIC)
Interfaces 1 x management - RJ-45 ¦ 12 x 1000Base-T - RJ-45 ¦ 1 x 100Base-TX (management)
Compatible Slots 1 x expansion slot
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, EN50082, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, EN 61000-6-1, FCC Part 15, ICES-003 Class A
Power
Power Over Ethernet (PoE) Supported PoE
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90%
