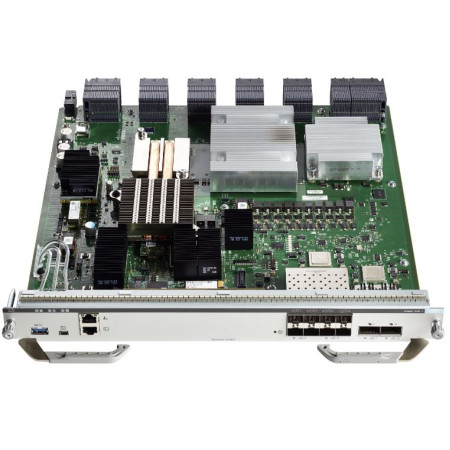

[C9400X-SUP-2XL] Cisco Supervisor Engine - Control processor - 40 Gigabit LAN, 100 Gigabit Ethernet, 25 Gigabit LAN

Device Type Control processor
Built-in Devices RFID tag
Width 14.9 in
Depth 14.6 in
Height 1.6 in
Weight 11.46 lbs
Processor / Memory / Storage
Processors Installed 2.4 GHz
RAM 16 GB
Flash Memory 10 GB
Hard Drive SSD 960 GB
Networking
Form Factor Plug-in module
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol IPv4, IPv6
Routing Protocol BGP-4, RIP-1, RIP-2, EIGRP, PIM-SM, static IP routing, OSPFv3, PIM-SSM, RIPng, MPLS, MSTP, RSTP, STP, LISP, IS-ISv4
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, YANG
Performance Bandwidth: 480 Gbps ¦ Switching capacity: 9.6 Tbps ¦ Forwarding rate: 3 Bpps
Capacity MAC addresses: 64000 ¦ IPv4 routes (ARP entries): 256000 ¦ FNF entries (IPv4): 384000 ¦ FNF entries (IPv6): 192000 ¦ VLAN IDs: 4096 ¦ PVST instances: 300 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Jumbo frame size: 9216 ¦ IPv4 routing entries: 256000 ¦ IPv6 routing entries: 256000 ¦ Layer 2 multicast routes: 32000 ¦ Layer 3 multicast routes: 32000 ¦ QoS hardware entries: 16000 ¦ Security ACL hardware entries: 16000 ¦ Packet buffer size: 108 MB
Status Indicators Status
Features NAT support, VPN support, PAT support, Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Virtual Private LAN Service (VPLS), Ethernet over MPLS (EoMPLS), Blue Beacon LED, secure boot, Committed Information Rate (CIR), image signing, Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 3.0, Secure Unique Device Identification (SUDI)
Encryption Algorithm 256-bit AES
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3bt
