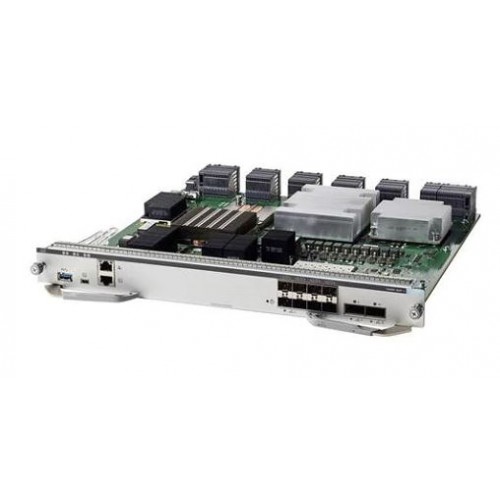

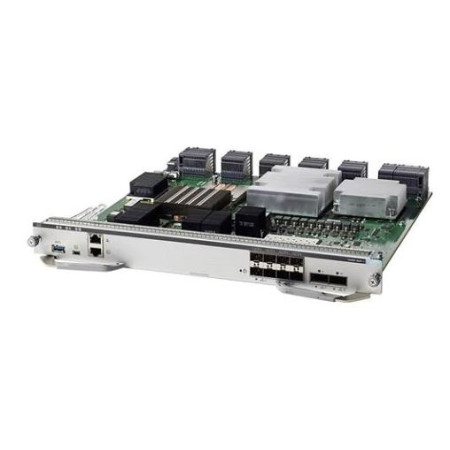

[C9400X-SUP-2] Cisco Supervisor Module - Control processor - 40 Gigabit LAN, 100 Gigabit Ethernet

Processor / Memory / Storage
Processors Installed Intel 2.4 GHz
RAM 16 GB
Flash Memory 10 GB
Hard Drive SSD 960 GB
Networking
Form Factor Plug-in module
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Performance Forwarding rate: 3 Bbps
Capacity MAC addresses: 64000 ¦ PVST instances: 300 ¦ VLAN IDs: 4096 ¦ STP Virtual Ports for PVST: 13000 ¦ FNF entries (IPv4/IPv6): 384000/192000 ¦ IPv6 routes: 256000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Jumbo frame size: 9216 ¦ IPv4 routes: 256000 ¦ Layer 3 multicast routes: 32000 ¦ Layer 2 multicast routes: 32000 ¦ QoS hardware entries: 16000 ¦ Packet buffer size: 108 MB
Features Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, LLDP support, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, Location ID Separation Protocol (LISP), CoAP support, secure boot
Encryption Algorithm 128-bit AES, 256-bit AES
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3bt
Expansion / Connectivity
Interfaces 1 x console - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x management (mini-USB) - Type B ¦ 4 x 10Gb Ethernet (uplink) - SFP+ ¦ 4 x 40Gb Ethernet/100Gb Ethernet - QSFP
