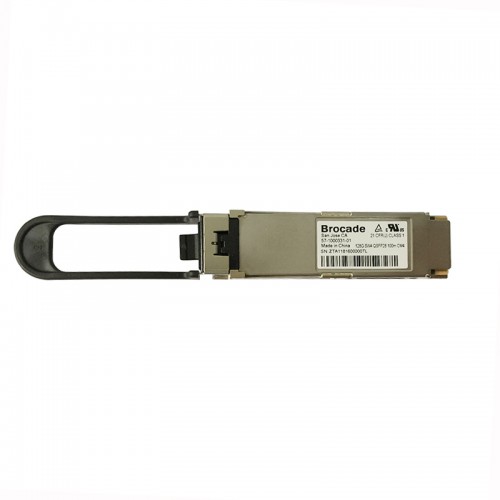

[XBR-000268] Brocade 128G (4x32Gb) SW4 QSFP128 100m OM4 X6 Module

General

Device Type: QSFP28 transceiver module
Form Factor: Plug-in module
Networking
Connectivity Technology: Wired
Cabling Type: Fibre Channel
Data Link Protocol: 128Gb Fibre Channel (Short Wave)
Data Transfer Rate: 112.2 Gbps
Optical Wave Length: 840-860 nm
Max Transfer Distance: 328 ft
Features: Hot swap module replacement
Expansion / Connectivity
Interfaces: 1 x 128Gb Fibre Channel (short wave) - MPO multi-mode female x 2
Miscellaneous
Compliant Standards: UL, EN 60950, RoHS, EN 60825-1, MSA SFF-8472, CDRH Class 1
Platform Support
Brocade X7
Brocade X6
Brocade FC32-64
Brocade G630
Brocade G620
Dimensions & Weight
Width: 0.7 in
Depth: 2.8 in
Height: 0.3 in
Environmental Parameters
Min Operating Temperature: -40 °F
Max Operating Temperature: 185 °F
