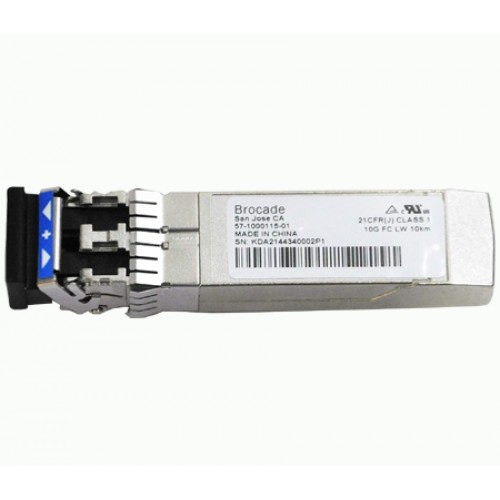

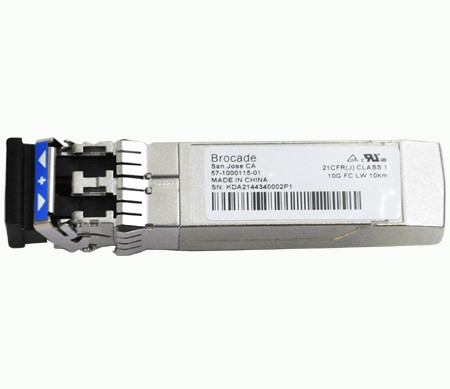

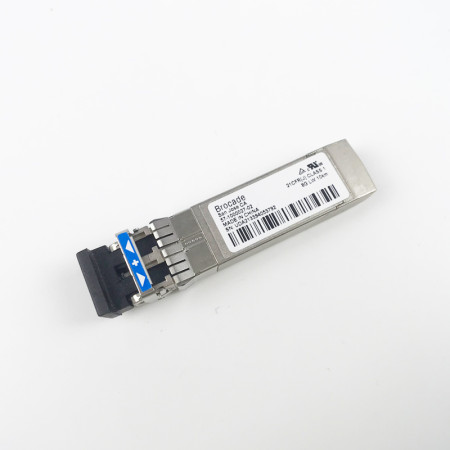

[57-1000027-02] Brocade 8G FC LWL 10km 1310nm Duplex LC SFP+ Transceiver Module

Features

Hot-pluggable SFP+ transceiver module
Up to 8.5 Gb/s bi-directional data links
Tri-Rate 2G/4G/8G Fibre Channel LWL Compliant
1310nm DFB Laser Transmitter
10km over Singlemode (SMF)
Duplex LC Connector
1.0W Power Dissipation
RoHS-6 compliant (lead-free)
Built-in digital diagnostic (DDM) functions
Commercial temperature range: -5ºC to 70ºC
Specifications

Form Factor: SFP
Wavelength: 1310nm
Distance: 10km
Data Rate (max): 8Gb/s
Low End Case Temperature (°C): 0°C
High End Case Temperature (°C): 70°C
Diagnostics: Digital
Transmitter: VCSEL
Receiver: PIN
Voltage Supply: 3.3--5v
Connector: Dual LC
Compatible with: Brocade DCX，8510,6520,6510,6505,5300,5100,300,Encryption,7800,7840
