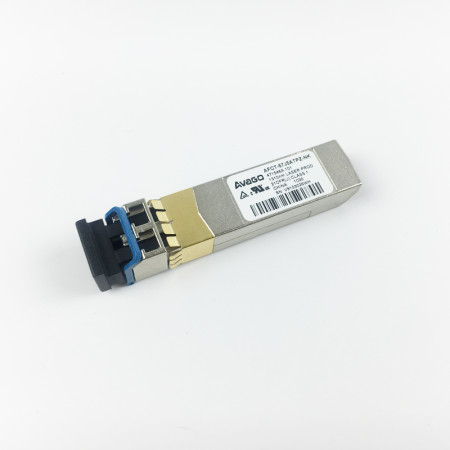

[AFCT-57J5ATPZ-NK] Avago 471546A.101 1310nm +3.3V LC SFP for 3.072/2.456 GBd CPRI/OBSAI

Features
Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
Compliant to Restriction on Hazardous Substances (RoHS) directive
Real time monitors of:
Transmitted average optical power
Received average optical power
Laser bias current
Temperature
Supply voltage
High performance 1310 nm DFB laser
Wide Temperature and Supply Voltage Operation: (-40°C to 85°C) (3.3 V ± 10%)
Transceiver specifi cations per SFP (SFF-8074i) MultiSource Agree ment and SFF-8472 (revision 9.3)
Up to 20km with 9um fi ber for 3.072 Gb/s
Up to 20km with 9um fi ber for 2.4576 Gb/s
LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
Compatible with Fibre Channel and Gigabit Ethernet applications

Applications
Wireless and cellular base station system interconnect:
OBSAI rates 3.072 Gb/s, 1.536 Gb/s, 0.768 Gb/s
CPRI rates 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s

Specifications
Data Rate: 3.072Gbps
Wavelength: 1310nm
Voltage - Supply: 3.3V
Connector Type: LC Duplex
Mounting Type: Pluggable, SFP
