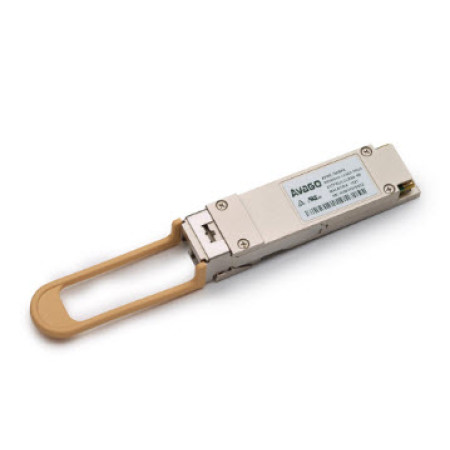

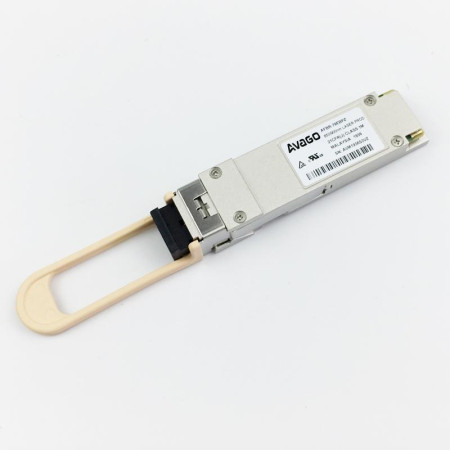

[AFBR-79EBPZ] Avago BIDI QSFP+ Pluggable, Duplex LC 40 Gigabit Ethernet Fiber-Optics Transceiver

Features
Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
Compliant to QSFP+ SFF-8436 Specification
Power Level 4: Max Power 3.5W
Class 1M Eye Safety
High port density: 21mm horizontal port pitch
Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
Links up to 100m using OM3 and 150m using OM4 optical fiber
+10 to +70ºC case temperature operating range
Proven High Reliability technology: Avago VCSEL transmitters and Avago PIN receiver
Hot pluggable transceiver for ease of installation and servicing
Two wire Serial (TWS) Management Interface with maskable interrupts for expanded functionality
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Applications
40 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications

Specifications
Product Series: Optical Transceivers QSFP+
Data Rate: 40 Gbps
Product Type: LC
iber Type: Multimode Glass
Maximum Distance(M): 150
Emitter: VCSEL
