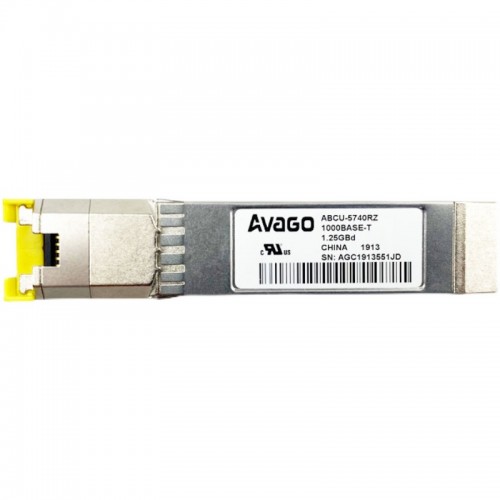

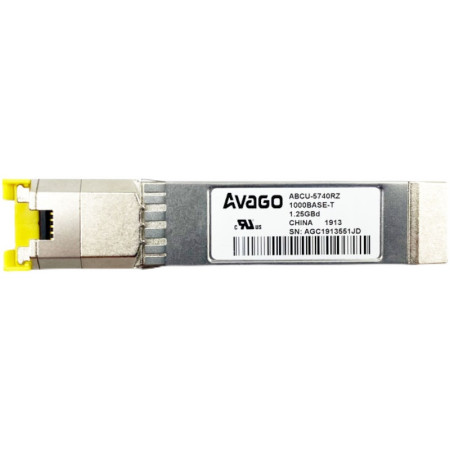

[ABCU-5740RZ] Avago 1.25Gbd 3.3V RJ45 Pluggable SFP Fiber Optic Transceiver Module

Features
RoHS-6 Compliant
Designed for Industry-Standard, Small Form Factor Pluggable (SFP) Ports
Compliance with IEEE 802.3:2005
Custom RJ-45 connector with integrated magnetics
Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
Low power, high performance 1.25 Gbd SerDes integrated in module
Single +3.3 V power supply operation
Auto-negotiation per IEEE 802.3:2005 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
Compatible to both shielded and unshielded twisted pair category 5 cable
Available in Commercial Temperature (-5~70°C) and Industrial Temperature (-40~85°C)
10/100/1000BASE-T operation available with SGMII host systems.

Applications
Switch to switch interface
Switched backplane applications
File server interface

Specifications
Form Factor: SFP
Data Rate: 1.25Gbd
Wavelength: -
Applications: Ethernet
Voltage - Supply: 3.3V
Connector Type: RJ45
Mounting Type: Pluggable, SFP
