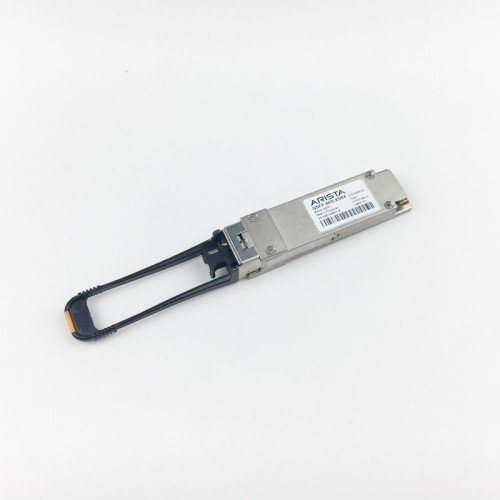

[XVR-10062-20] Arista QSFP-40G-XSR4 40GBASE-XSR4 850nm MPO QSFP+ Optic Transceiver Module

Specifications

Form Factor: QSFP+
Max Data Rate: 42Gbps (4×10.5Gbps)
Wavelength: 850nm
Max Cable Distance: 400m@OM4

Connector: MTP/MPO-12 Male
Cable Type: MMF
Transimitter Type: VCSEL 850nm
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -7.5~0dBm
Receiver Sensitivity: <-9.9dBm
Powerbudget: 2.4dB
Receiver Overload: 2.4dBm
Power Consumption: <1.2W
Extinction Ratio: >3dB
Transmit and Dispersion Penalty: 3.5dB
Modulation Format: NRZ
Packaging Technology: COB (chip on board) Packaging
Bit Error Ratio (BER): 1E-12
Protocols: 40G Ethernet, Infiniband QDR, SATA/SAS3, IEEE 802.3ba, MSA Compliant
Application: 40GBASE-SR4 40G Ethernet, Breakout to 10GBASE-SR Ethernet, Data Center
