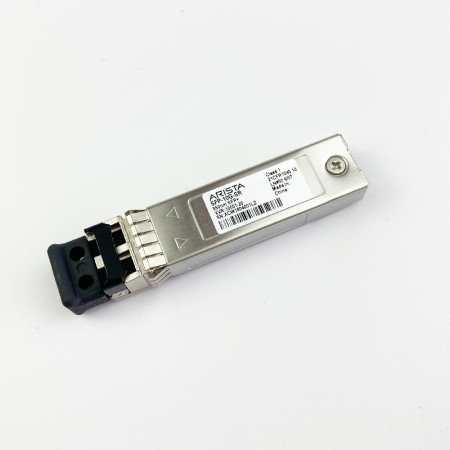

[XVR-10001-20] Arista SFP-10G-SR 10GBASE-SR 850nm SFP+ Transceiver Module

Specifications

Form Factor: SFP+
Max Data Rate: 10.3125Gbps
Wavelength: 850nm
Max Cable Distance: 300m@OM3/400m@OM4
Connector: LC Duplex
Media: MMF
Transmitter Type: VCSEL
Receiver Type: PIN
DDM/DOM: Supported
Commercial Temperature Range: 0 to 70°C (32 to 158°F)
TX Power: -7.3~-1dBm
Receiver Sensitivity: < -11.1dBm
Typical Power Consumption: ≤0.6W
Receiver Overload: 0.5dBm
Bit Error Ratio (BER): 1E-12
Extinction Ratio: >3dB
EMC (Electro Magnetic Compatibility): Supported
Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
