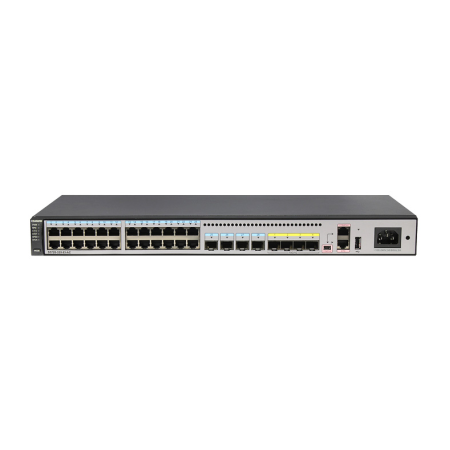

[S5720-32X-EI-DC] Huawai Switch 24 Ethernet 10/100/1000 ports,4 Gig SFP,4 10 Gig SFP+,DC -48V,front access

Fixed port 24x10/100/1000 Base-T, 4x100/1000Base-X SFP, 4x10 Gig SFP+, 2 QSFP+
Forwarding performance 102 Mpps
Switching capacity 598 Gbit/s
Extended slot NA
DRAM and Flash SDRAM: 2 GB; Flash: 340 MB
MAC address table

IEEE 802.1d
64K MAC address entries
MAC address learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
VLAN 4K VLANs
Guest VLAN and voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping
VLAN-based transparent transmission of protocol packets
Jumbo frame 12K
Ring protection

RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing millisecond-level
protection switchover
Smart Ethernet Protection (SEP),G.8032 Ethernet Ring Protection Switching (ERPS)
STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop protection; BPDU tunnel
IP routing Static routing, RIPv1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and policy-based routing
16K IPv4 unicast routes, 8K IPv6 unicast routes
3K IPv4 static routes, 1K IPv6 static routes
IPv6 features Neighbor Discovery (ND)
Path maximum transmission unit (PMTU)
IPv6 Ping, IPv6 Tracert, and IPv6 Telnet
6 to4 tunnel, ISATAP tunnel, and manually configured tunnel
ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or
protocol types
Multicast Listener Discovery (MLD) v1/v2 snooping
Multicast forwarding IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load splitting among trunk member ports
Controllable multicast
Layer 2 multicast control
Port-based multicast traffic statistics collection
IGMPv1/v2/v3, Protocol Independent Multicast Sparse Mode (PIM-SM), and Protocol Independent
Multicast Dense Mode (PIM-DM), and Protocol Independent Multicast Source-Specific Multicast (PIM-SSM)
Multicast Source Discovery Protocol (MSDP)
QoS/ACL Inbound and outbound traffic rate limiting on a port
Packet redirection
Broadcast storm control
Port-based traffic policing and two-rate and three-color CAR
Eight queues per port,Weighted round robin (WRR), deficit round robin (DRR), strict priority (SP), WRR+SP, and DRR+SP queue scheduling algorithms
Weighted random early detection (WRED)
Re-marking of the 802.1p priority and DSCP value of packets
Packet filtering based on Layer 2 to Layer 4 information, includi ng source MAC addresses, destination MAC addresses, source IP addresses, destination IP addresses, TCP/UCD source/destination ports, protocol types, and VLAN IDs
Per queue rate limiting and interface traffic shaping
1:1,N:1,N:4 port mirroring; VLAN mirroring
Security
features

Hierarchical user management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface number, and VLAN ID of a user
Port isolation, port security, and sticky MAC
MAC Forced Forwarding (MFF)
Blackhole MAC address entries
Limit on the number of learned MAC addresses
IEEE 802.1x authentication and the limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense; Blacklist and whitelist; MACSec ready
Access security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Client, DHCP Security
Port aggregation

LACP
Up to 128 trunk groups
Up to 8 member interfaces in each trunk group
Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)
ITU-Y.1731; BFD for BGP/IS-IS/OSPF/static route
Super Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration
Automatically loading the system software package and patches of clients
One-click and automatic delivery of service configurations
Supports independent running client
Management
and
Maintenance iStack, Virtual cable test, SNMP v1/v2c/v3, RMON/RMON2
Web-based network management system
System logs and multi-level alarms
sFlow, LLDP/LLDP-MED, 802.3az EEE
SCP (Secure Copy Protocol), TFTP, FTP
Store dual software images and configuration files
