CISCO [N9K-C9336PQ] Cisco Nexus 9336 ACI Spine switch with 36p 40G QSFP N9K-C9336PQ.. Product #: N9K-C9336PQ based on 0 reviews

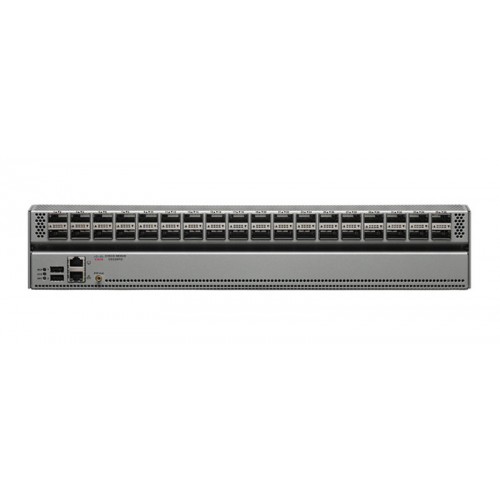

[N9K-C9336PQ] Cisco Nexus 9336 ACI Spine switch with 36p 40G QSFP

MANUFACTURER: CISCO
P/N (รหัสสินค้า): N9K-C9336PQ
- +

Ports 36 x 40 Gigabit QSFP+
Performance Bandwidth: 1.44 Tbps
Capacity Longest prefix match (LPM) entries (IPv4): 16000 ¦ Host table entries (IPv4): 88000 ¦ MAC addresses: 160000 ¦ IPv4 routes (Multicast): 32000 ¦ Virtual interfaces (VLANs): 4096 ¦ Equal-Cost Multipathing (ECMP) ways: 64 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Rapid Per-VLAN Spanning Tree Plus instances: 507 ¦ Virtual Routing and Forwarding (VRF) entries: 1000 ¦ IGMP snooping entries: 32000
Jumbo Frame Support Yes
Routing Protocol IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, static IPv4 routing, ECMP, Bidirectional Forwarding Detection (BFD), VRRPv3
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2
Authentication Method RADIUS, PAP, CHAP, TACACS+, MS-CHAP, MS-CHAP v.2
Features Flow control, modular design, load balancing, VLAN support, IGMP snooping, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, RDMA support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), DiffServ Code Point (DSCP) support
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
Expansion / Connectivity
Interfaces 36 x 40Gbit LAN QSFP+ ¦ 2 x USB ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Power Provided 1200 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit Included
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, EN 300386
Dimensions & Weight
Width 17.4 in
Depth 22.3 in
Height 3.5 in
Weight 34.39 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
