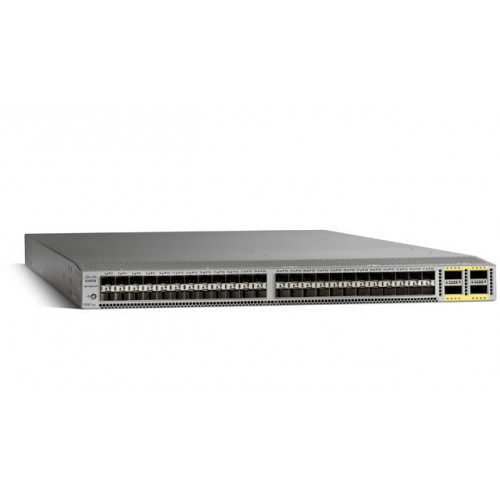

[N6K-C6001-64T] Cisco Nexus 6000 Switch - L3 - managed - 48 x 10GBase-T + 4 x 40 Gigabit QSFP+

Ports 48 x 10GBase-T + 4 x 40 Gigabit QSFP+
Performance Forwarding performance: 1.28 Tbps
Capacity Virtual interfaces (VLANs): 4096 ¦ ACL: 4000 ¦ IPv4 routes: 8000 ¦ IGMP groups: 8000 ¦ ARP entries: up to 256000
MAC Address Table Size 256K entries
Jumbo Frame Support 9216 bytes
Routing Protocol RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, PIM-SM, IGMPv3, EIGRP for IPv6, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, MS-CHAP
Features VLAN support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), DHCP relay, Link Aggregation Control Protocol (LACP), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF)
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz
Expansion / Connectivity
Interfaces 48 x 10GBase-T RJ-45 ¦ 4 x 40Gbit LAN QSFP+ ¦ 1 x management
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 100/230 V (50/60 Hz)
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386
Software / System Requirements
Software Included Cisco NX-OS
Dimensions & Weight
Width 17.3 in
Depth 30 in
Height 1.7 in
Weight 31.97 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
