CISCO [N6004-B-24Q] Cisco Nexus 6000 Chassis - 24 x 40GE Ports/FCoE Bundle; 6PSU, 4 FAN N6004-B-24Q.. Product #: N6004-B-24Q based on 0 reviews

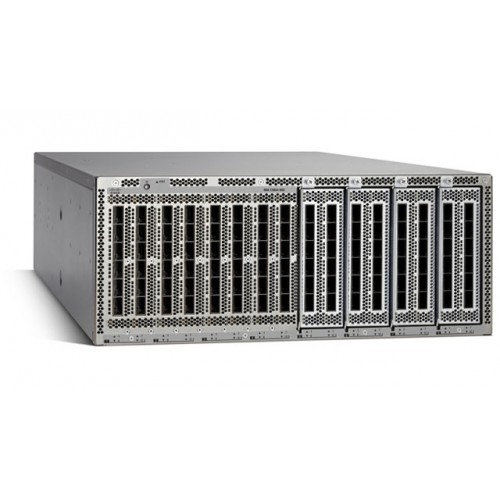

[N6004-B-24Q] Cisco Nexus 6000 Chassis - 24 x 40GE Ports/FCoE Bundle; 6PSU, 4 FAN

MANUFACTURER: CISCO
P/N (รหัสสินค้า): N6004-B-24Q
- +

Ports 24 x 40 Gigabit QSFP+
Performance Forwarding performance: 7.68 Tbps
Capacity Virtual interfaces (VLANs): 4096 ¦ ACL: 4000 ¦ IPv4 routes: 8000 ¦ IGMP groups: 8000
MAC Address Table Size 256K entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Authentication Method RADIUS, TACACS+
Features Modular design, hot swap module replacement, VLAN support, Syslog support, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Equal-Cost Multipath (ECMP), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), hot swappable 4 fans, Class of Service (CoS), broadcast storm protection
Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz
Expansion / Connectivity
Interfaces 24 x 40Gbit LAN QSFP+ ¦ 1 x USB ¦ 1 x management
Expansion Slots 8 (total) / 6 (free) x expansion slot
Installed Modules Qty (Max) 2 (installed) / 8 (max)
Power
Power Device Internal power supply - hot-plug
Installed Qty 6 (installed) / 6 (max)
Power Redundancy Yes
Power Redundancy Scheme N+N
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 3300 Watt
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1 Second Edition, GB 4943, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width 17.3 in
Depth 30 in
Height 7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
