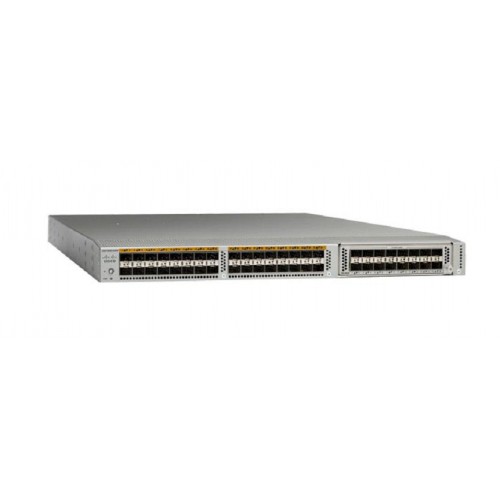

[N5K-C5548UP-FA] Cisco Nexus 5000 Switch - 33 x Expansion Slots

Ports 32 x SFP+
Performance Throughput: 960 Gbps
MAC Address Table Size 32K entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, MS-CHAP
Features Layer 2 switching, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+)
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p
Expansion / Connectivity
Interfaces 32 x SFP+ ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console management
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 390 Watt
Dimensions & Weight
Width 17.3 in
Depth 29.5 in
Height 1.7 in
Weight 35.05 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
