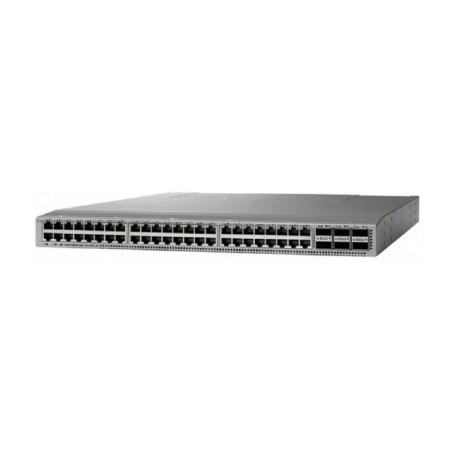

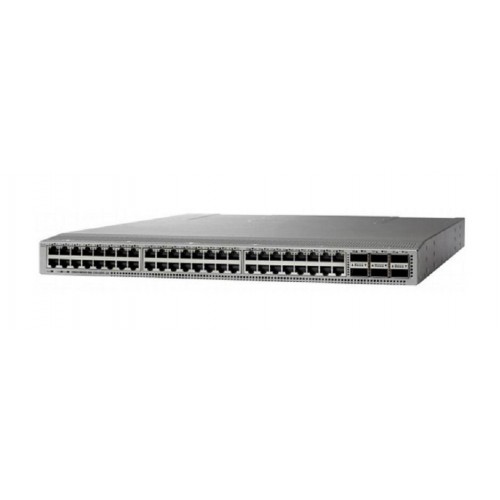

[C1-N9K-C93108-B18Q] Cisco ONE Nexus 93108TC-EX Switch - L3 - 48 x 10GBase-T + 6 x 40/100 Gigabit QSFP+

Device Type Switch - 48 ports - L3 - with 4 x QSFP-40G-SR-BD
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10GBase-T + 6 x 40/100 Gigabit QSFP+
Performance Bandwidth: 2.16 Tbps ¦ Active SPAN sessions: 4
Capacity Multiple Spanning Tree Protocol instances: 64 ¦ HSRP groups: 490 ¦ Per VLAN Rapid Spanning Tree instances: 500 ¦ Maximum number of links in a port channel: 32 ¦ Maximum number of port channels: 512 ¦ ECMP paths: 64 ¦ Virtual Routing and Forwarding (VRF) instances: 16000 ¦ VLANs supported: 4096 ¦ ACL entries (egress): 2000 ¦ ACL entries (ingress): 4000 ¦ IGMP snooping groups: 32000 ¦ Multicast routes: 16000
MAC Address Table Size 96K entries
Routing Protocol OSPF, RIP, RIP-2, BGP, EIGRP, HSRP, PIM-SM, MSDP, ECMP, MPLS
Features Layer 3 switching, High Availability, hot swappable 4 fans, Virtual PortChannel (vPC) technology, In-Service Software Upgrade (ISSU), NPV Gateway mode, Virtual Extensible LAN (VXLAN), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), 40MB system buffer
RAM 24 GB
Built-in Devices 64 GB SSD
Expansion / Connectivity
Interfaces 48 x 10GBase-T RJ-45 downlink ¦ 6 x 100Gbit/40Gbit LAN QSFP28 uplink ¦ 1 x management RJ-45 ¦ 1 x management SFP+ ¦ 1 x USB ¦ 1 x serial (RS-232)
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme N+1
Miscellaneous
Included Accessories Fixed accessory kit
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386, EN61000-3-2, EN61000-3-3, EN 55022 Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, KN 61000-4
Dimensions & Weight
Width 17.3 in
Depth 22.5 in
Height 1.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
