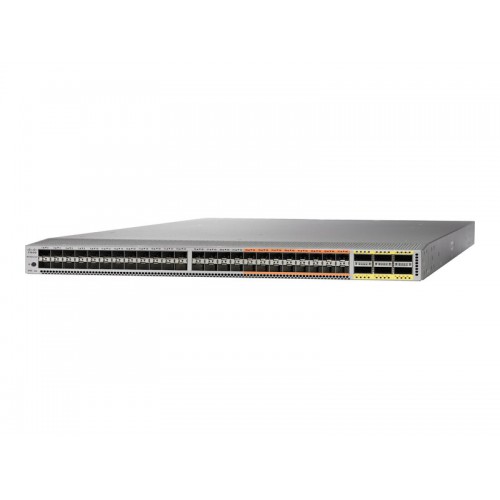

[C1-N5672UP-8FEX-1G] Cisco ONE Nexus 5672UP Switch - 48 ports - managed - with 8 x 1G

Ports 32 x 1 Gigabit / 10 Gigabit SFP+ + 16 x combo 1 Gigabit / 10Gb Ethernet / 2/4/8Gb Fibre Channel / FCoE SFP+ + 6 x 40Gb Ethernet / FCoE QSFP+ (breakout compatible)
Performance Forwarding performance: 1.44 Tbps
Capacity ARP entries: 256000 ¦ Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4000 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Host table entries (IPv4): 32000 ¦ Host table entries (IPv6): 8000 ¦ Multicast entries (IPv4): 8000 ¦ IGMP snooping entries: 8000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000 ¦ Equal-Cost Multipathing (ECMP) ways: 64
MAC Address Table Size 256K entries
Jumbo Frame Support 9216 bytes
Routing Protocol IS-IS, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, OSPFv2, PIM-SM, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), BGP for IPv6
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm AES
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, MS-CHAP
Features Routing, layer 3 switching, DHCP support, VPN support, ARP support, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, port air intake, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support, Dynamic ARP Inspection (DAI), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), IPv4 support, Link Aggregation Control Protocol (LACP), Per-VLAN Rapid Spanning Tree (PVRST), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Multicast VLAN Registration (MVR), Virtual Routing and Forwarding (VRF), redundant hot swappable fans, static routing, Transparent (N_Port ID Virtualization - NPIV) mode support, Registered State Change Notification (RSCN) support, Call Home function support, FCoE forwarding, STP PortFast, Class of Service (CoS), port exhaust, Multicast Source Discovery Protocol (MSDP), SNMP support, Virtual PortChannel (vPC) technology
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz, FIP v1
Status Indicators Port status
Expansion / Connectivity
Interfaces 48 x SFP+ ¦ 6 x QSFP+ ¦ 1 x console RJ-45 management ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x USB
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Included Accessories Accessory kit
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, AES, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, CAN/CSA C22.2 No. 60950-1, Directive 2004/108/EC, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, EN 300386, AS/NZS CISPR 22
Software / System Requirements
Software Included Cisco NX-OS
Dimensions & Weight
Width 17.3 in
Depth 30 in
Height 1.7 in
Weight 31.97 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
