CISCO [C1-N5548UP4N2232PF] Cisco ONE Nexus 5548UP Switch - managed - 32 x 10 Gigabit / FCoE SFP+ - with 4 x Nexus 2232PP GE Fabric Extender, 64 x 10G SFP+ C1-N5548UP4N2232PF.. Product #: C1-N5548UP4N2232PF based on 0 reviews

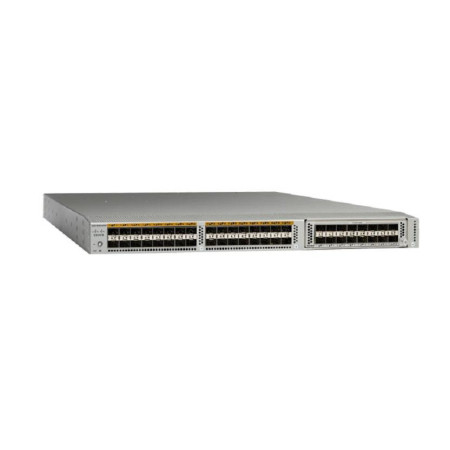

[C1-N5548UP4N2232PF] Cisco ONE Nexus 5548UP Switch - managed - 32 x 10 Gigabit / FCoE SFP+ - with 4 x Nexus 2232PP GE Fabric Extender, 64 x 10G SFP+

MANUFACTURER: CISCO
P/N (รหัสสินค้า): C1-N5548UP4N2232PF
- +

Ports 32 x 10 Gigabit / FCoE SFP+
MAC Address Table Size 32K entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, MS-CHAP
Features Layer 2 switching, ARP support, VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP)
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1Qbb, IEEE 802.1Qaz
Expansion / Connectivity
Interfaces 32 x SFP+ ¦ 1 x 1000Base-T RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x USB Type A
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Power Provided 750 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, GB 4943, FIPS 140-2 Level 1, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN22 Class A, EN 300386
