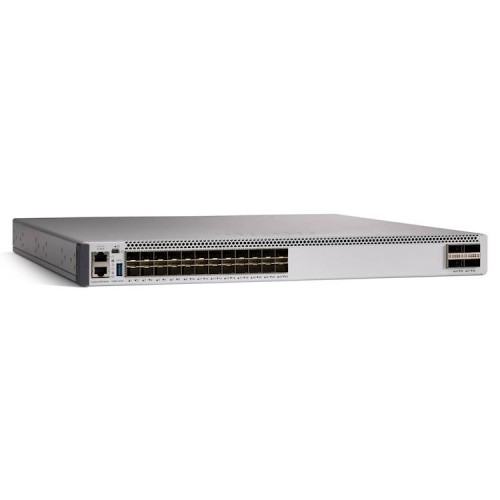

[C9500-24Y4C-A] Cisco Catalyst 9500 24x1/10/25G and 4-port 40/100G, Advantage

Capacity Routing table entries: 80000 ¦ Indirect IPv4 routes: 212000 ¦ Host IPv4 routes: 90000 ¦ Indirect IPv6 routes: 212000 ¦ Host IPv6 routes: 90000 ¦ Multicast scale: 32000 ¦ QoS ACL scale: 16000 ¦ Security ACL scale: 270000 ¦ FNF entries: 96000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 4000
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Encryption Algorithm 256-bit AES
Features DHCP support, NAT support, PAT support, trunking, MPLS support, Non-Stop Forwarding (NSF), Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Virtual Routing and Forwarding (VRF), Maximum Likelihood Demodulation (MLD), Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), MACsec support, Control plane protection (CoPP), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, CoAP support, Switched Port Analyzer (SPAN)
Flash Memory 16 GB
Jumbo Frame Support 9198 bytes
MAC Address Table Size 64K entries
Performance Switching capacity (full duplex): 1.6 Tbps ¦ Forwarding rate: 1 Bpps
Ports 24 x 25 Gigabit SFP28
Processor 1: 2.4 GHz
RAM 16 GB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
Routing Protocol OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
Subtype 25 Gigabit Ethernet
Dimensions & Weight
Depth 18 in
Height 1.7 in
Weight 20.99 lbs
Width 17.5 in
Environmental Parameters
Humidity Range Operating 5 - 90% (non-condensing)
Humidity Range Storage 5 - 95% (non-condensing)
Max Operating Temperature 104 °F
Max Storage Temperature 149 °F
Min Operating Temperature 32 °F
Min Storage Temperature -4 °F
Expansion / Connectivity
Interfaces 24 x 25Gbit LAN SFP28 ¦ 4 x 100Gbit LAN ¦ 2 x USB 3.0
