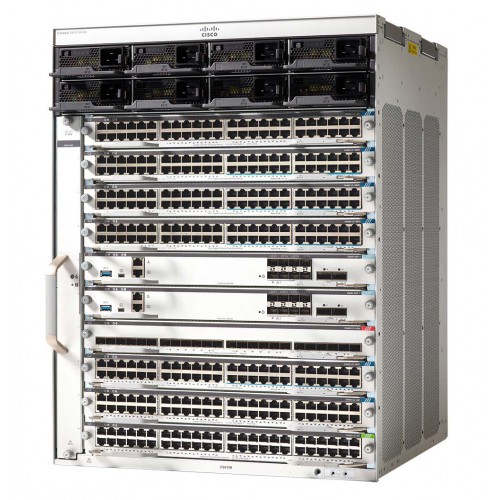

[C9410R] Cisco Catalyst 9400 Series 10 slot chassis

General
Compliant Standards IEEE 802.3
Device Type Switch
Enclosure Type Rack-mountable 13U
Features Fan tray, side to side airflow
Power Over Ethernet (PoE) PoE
Dimensions & Weight
Depth 12.5 in
Height 22.6 in
Weight 64.99 lbs
Width 17.3 in
Environmental Parameters
Humidity Range Operating 10 - 95% (non-condensing)
Humidity Range Storage 10 - 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 23 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Expansion Slots 8 (total) / 8 (free) x line-card slot ¦ 2 (total) / 2 (free) x supervisor slot
Installed Modules Qty (Max) 0 (installed) / 10 (max)
