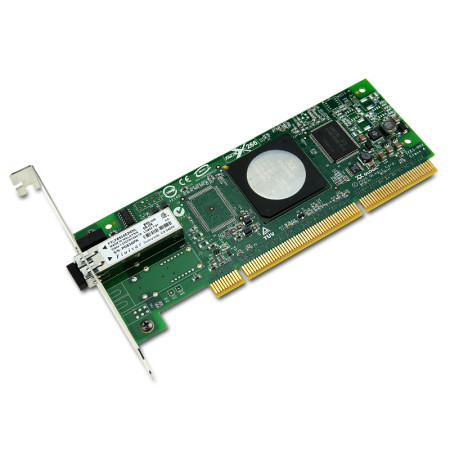

[QLA2460] Qlogic QLA2460-CK PCI-X Single-port 4Gb Fibre Channel Host Bus Adapter

Host Bus Interface Specifications
Bus Interface: 64-bit, PCI-X® 2.0 266MHz DDR, compatible with66/33MHz PCI and 133/100/66MHz PCI-X
Memory: 1MB SRAM per port, 1MB flash (SPI), and 2KB NVRAM (SPI)
Hardware Platforms1: IA32 (x86), IA64, IEM64T, AMD® Opteron™ 64, Sun®, SPARC®, Apple® G5 (Xserve® and Power Mac®)
Compliance: PCI Local Bus Specification, revision 2.3, PCI-X Protocol Addendum to the PCI Local Bus Specification, revision 2.0a, PCI-X Electrical and Mechanical Addendum (revision 2.0a) to the PCI Local Bus Specification, PCI Bus Power Management Interface Specification revision 1.1, PCI Hot Plug Specification, revision 1.0

Fibre Channel Specifications
Data Rate: 4/2/1Gbps auto-negotiation (4.25/2.125/1.0625GBps)
Performance: 150,000 IOPS per port
Topology: Point-to-point (N_Port), arbitrated loop (NL_Port), switched fabric (N_Port)
Logins: Support for F_Port and FL_Port login: 2,048 concurrent logins and 2,048 active exchanges per port
Class of Service: Class 2 and 3
Protocols: FCP (SCSI-FCP), FC-TA PE (FCP-2)
Compliance: SCSI-3 Fibre Channel Protocol (SCSI-FCP), Fibre Channel Physical and Signaling Interface (FCPH), Fibre Channel 2nd Generation (FC-PH-2), Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3), Fibre Channel-Arbitrated Loop (FCAL- 2), Fibre Channel Fabric Loop Attachment Technical Report (FC-FLA), Fibre Channel-Private Loop Direct Attach Technical Report (FC-PLDA), Fibre Channel Tape (FC-TAPE) profile, SCSI Fibre Channel Protocol-2 (FCP-2), Second Generation Fibre Channel Generic Services (FC-GS-2), Third Generation Fibre Channel Generic Services (FC-GS-3), Fibre Channel Framing and Signaling (FC-FS)
