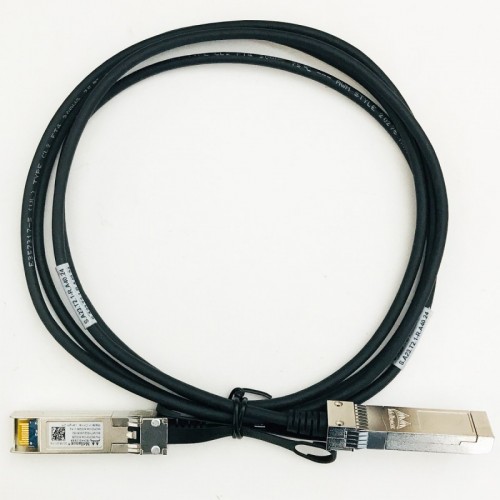

[MCP2104-X002B] Mellanox passive copper cable, ETH 10GbE, 10Gb/s, SFP+, 2m, Black Pulltab, Connector Label

Mellanox 10GbE SFP+ Direct Attach Copper Cables

Mellanox SFP+ direct attached copper (DAC) cables provide robust connections for leading edge 10GbE systems. Passive copper cables require no additional power to ensure quality connectivity. The cables are compliant with SFF-8418 and SFF-8419 specifications and provide connectivity between devices using SFP+ ports. The cables use state-of-the-art signal processing technology to fill the expanding need for cost effective data center interconnects.

Mellanox unique, quality, passive, copper, cable solutions provide a power efficient replacement for active power connectivity such as fiber optic cables. Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability. Optimizing systems to operate with Mellanox’s 10GbE passive copper cables significantly reduces power consumption and EMI emission, eliminating the use of enterprise data center (EDC) hosts.

Highlights
Compliant with SFF-8418 and SFF-8419
Up to 7m 10Gb/s data rates
Ultra-low crosstalk for improved performance
Low insertion loss
BER better than 1E-15
Serial numbers printed on each SFP+ connector
Tested in an end-to-end system
RoHS-6 compliant
