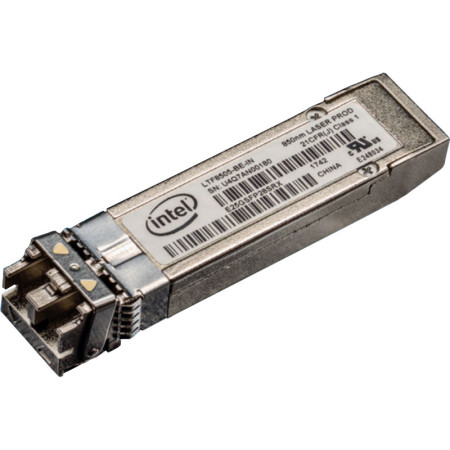

[E25GSFP28SRX] Intel Ethernet SFP28 Optical Transceiver Module, 25GBASE-SR, Extended Temp

Intel Ethernet SFP28 Optics are an excellent choice for high-speed communications equipment where extraordinary performance and reliability are essential. These hot-pluggable optical modules consume low-power and are offered in the extended temperature range.

When used with Intel Ethernet Network Adapters with SFP28 connectivity, these optics provide more secure connections for virtualization, flexibility for LAN and SAN networking, and consistently reliable performance.

Fiber optics are more immune to harsh environmental factors. The light used for data transmission does not carry an electrical current so it cannot be impacted by electrical transmissions or radio frequency interference. Also, light has a superior signal strength that is near impervious to unwanted network taps.

Key Features
Hot-pluggable SFP28 optical transceivers
Support for commercial and extended temperature ranges
RoHS 6 compliant (lead-free)

Specifications
Product Code: E25GSFP28SRX
Module Form Factor: SFP28
Network Standards Physical Layer Interface: 25GBASE-SR (Extended Temp)
SFP28 Module Specifications
Electrical: SFF-8402, SFF-8431
I2C Register Interface: SFF-8472 Rev 12.0
Airflow: Refer to the Ethernet network adapter product brief for specific airflow and temperature recommendations
Transmission rate: 25.78Gb/s
Connector type: LC
Optical fiber type: MMF
Optical Wave Length: 850nm
Transmitter: 850nm VCSEL
Receiver: 850nm PIN/TIA CW Mode
Transmission distance: 70m at OM3, 100m at OM4
Case Operating Temperature: 0 to 85 °C
Storage Temperature: -40 to 85 °C
