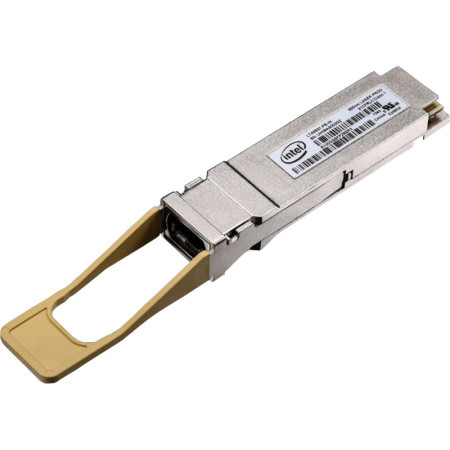

[E100GQSFP28SRX] Intel Ethernet QSFP28 Optical Transceiver Module, 100GBASE-SR4, Extended Temp

Intel Ethernet QSFP28 Optic E100GQSFP28SRX is an excellent choice for up to 100 meter reach in multimode fiber systems for high-speed communications equipment. Ideal for short-range multi-lane data communication and interconnects applications, the 100GbE QSFP28 SR4 transceiver is a high-performing module for SR optical links. There are four independent transmit and receive channels, each capable of 25Gbps operation, for an aggregate data rate of 100Gbps up to 100 meters over OM4 MMF.

When used with Intel Ethernet Network Adapters with QSFP28 connectivity, these optics provide interoperability and secure connections for virtualization, high-speed networking, and consistently reliable performance. Extended case operating temperature allows for system flexibility to support a range of requirements

Key Features
Hot-pluggable QSFP28 optical transceiver
Up to 100 m link on OM4 multi-mode fiber (MMF)
Four independent parallel optical channels
Max power 2.5 W
QSFP28 MSA compliance
Power class 3
Case operating temperature 0 to 85 °C
RoHS II Compliance
Meets standard BER of 5E-5

Specifications
Product Code: E100GQSFP28SRX
Module Form Factor: QSFP28
Network Standards Physical Layer Interface: 100GBASE-SR4
Airflow and Temperature Guidelines: Refer to adapter product brief for specific airflow and temperature requirements
Module Specifications
Electrical: SFF-8679
I2C Register interface: SFF-8636
Mechanical: SFF-8661
Transmission rate: 100 Gbit/s
Optical fiber type: MMF
Transmission distance: 100m @ OM4 MMF
Working case temperature: 0°C to 85°C
