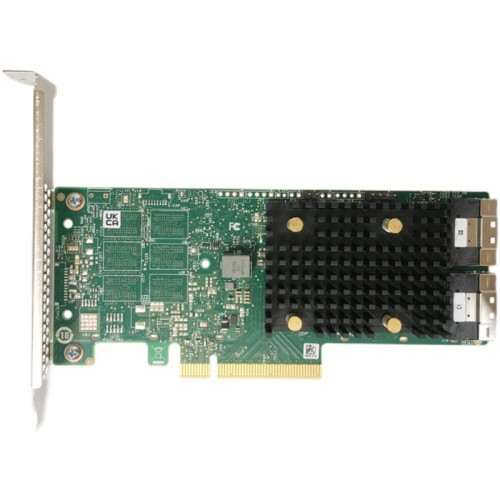

[9500-16i] Broadcom LSI 9500-16i 05-50134-00 PCIe 4.0 x8 SAS3816 16 Internal Ports 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe(NVMe) Tri-Mode HBA

Specifications
Product: HBA 9500-16i
Manufacturer Part #: 05-50134-00
Lifecycle: Active
Distributor Inventory: No
Brackets: Full height and low profile
Devices Supported: SAS/SATA: 1024, NVMe: 32
Generation: 12 Gb/s
Host Bus Type: x8 lane PCI Express 4.0
Internal Connectors: 2 x8 SFF-8654 (SlimSAS)
Internal Ports: 16
I/O Controller: SAS3816
Management Software: LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
MTBF: > 5,000,000 hours at 40° C
Operating Humidity: 20% to 80% Non-condensing
Operating Temperature°C: 0°C to 55°C
OS Support: Microsoft Windows, VMware vSphere, VMware vSphere/ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
Physical Dimensions: Low profile 6.127” x 2.712”
Regulatory Certifications: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
Typical Power: 8.9W
Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
What's in the box: 9500-16i HBA, Low Profile Bracket, Bracket, FH (attached)
